| GENERAL |
| Type: | Amateur multimode decoder |
| CPU: | Zilog 86C93 |
| System ROM: | 16 KB CMOS EPROM
2 KB EEPROM |
| System RAM: | 32 KB SRAM |
| Computer ports / Speed: | None |
| Power supply: | 11-14 VDC |
| Current drain / power consumption: | Max 200 mA |
| Dimensions (W*H*D): | 222*64*203 mm (8.75*2.5*8") |
| Weight: | 907 g (2 lb) |
| Other features: |
LCD display (2*20 charaters). 8 KB scrollable text buffer.
Printer connector.
|
|
|
|
|
| RADIO COMM'S SECTION |
Modes
(Depending on version): |
Version 1
Baudot (RTTY)
SITOR A & B
FEC-A
ASCII
SWED-ARQ
FAX (Dot-matrix printer required)
ACARS
DTMF
CTCSS/PL
DCS
POCSAG
GOLAY
Version 2
Super POCSAG added
Version 3
POCSAG 2400 added
|
| GPS / APRS functions: | No |
| Mailbox: | No |

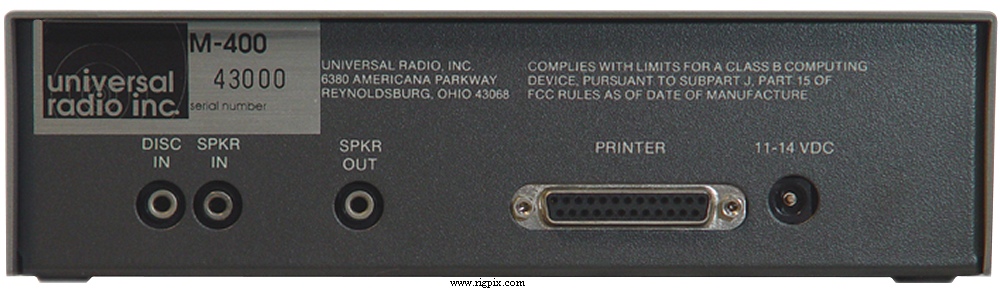

| Radio ports: |
Speaker input: TS "Minijack" (3.5 mm)
Discriminator input: TS "Minijack" (3.5 mm)
|
| Data rate over radio: | 45-2400 bd |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1993-1996 (Discontinued) |
| Additional info: |
New price, june 1993 in the US: $399.95
|
| Related documents: |
User manual v2 (18.8 MB)
CPU: 86C93
EPROM: 27C128
EEPROM: 85C82
SRAM: uPD43256B
|
| Modifications and fixes: | |
| Reviews: | Popular Communications: December 1996, page 62 |
| Options / Accessories: |
|
