| GENERAL |
| Type: | Amateur multimode decoder |
| CPU: | ? |
| System ROM: | ? |
| System RAM: | ? |
| Computer ports / Speed: | RS-232C / 4800 bd, 8N1 |
| Power supply: | 11-14 VDC |
| Current drain / power consumption: | Max 250 mA |
| Dimensions (W*H*D): | 222*64*203 mm (8.75*2.5*8") |
| Weight: | 907 g (2 lb) |
| Other features: |

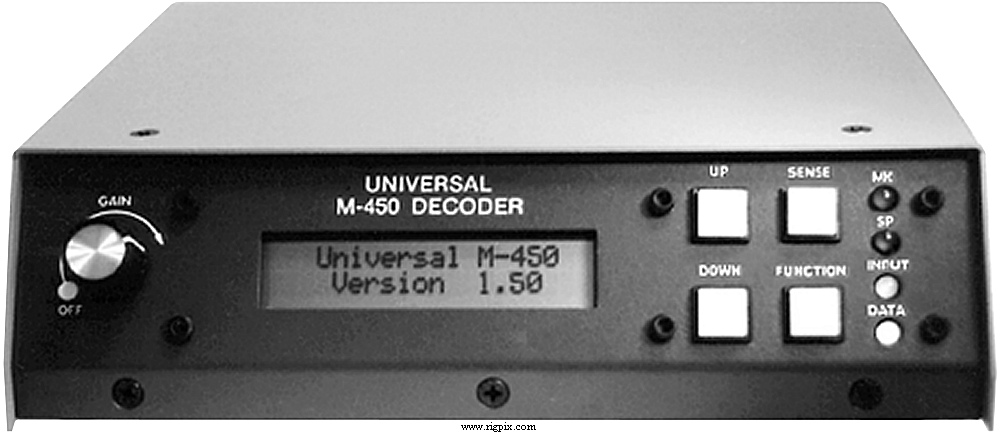

LCD display (2*20 charaters). 8 KB scrollable text buffer.
Printer port. RS-232C port.
|
|
|
|
|
| RADIO COMM'S SECTION |
| Modes: |
Version 1.5
Baudot (RTTY)
SITOR A and B
FEC-A
ASCII
SWED-ARQ
FAX (Dot-matrix printer required)
ACARS
DTMF
CTCSS/PL
DCS
NB! No pager modes in this model (New US law at the time, or...?)
|
| GPS / APRS functions: | No |
| Mailbox: | No |

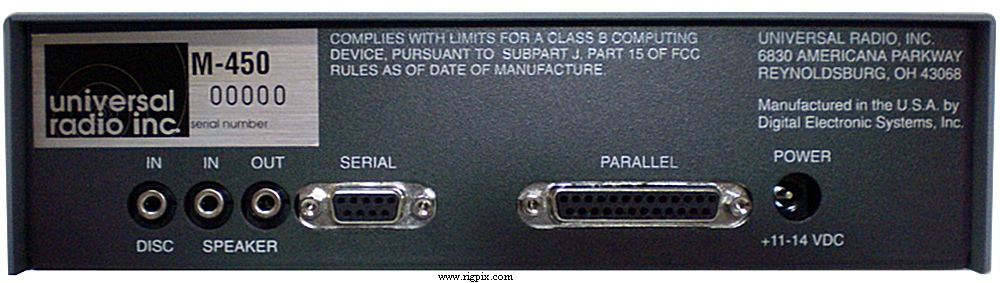

| Radio ports: |
Speaker input: TS "Minijack" (3.5 mm)
Discriminator input: TS "Minijack" (3.5 mm)
|
| Data rate over radio: | 45-2400 bd |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1997-2003 (Discontinued) |
| Additional info: |
New price, march 1997 in the US: $399.95
New price, february 1999 in the US: $399.95
New price, august 2000 in the US: $399.95
New price, april 2001 in the US: $399.95
New price, june 2002 in the US: $399.95
New price, july 2003 in the US: $399.95
|
| Related documents: |
User manual v1.5 (119 KB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
