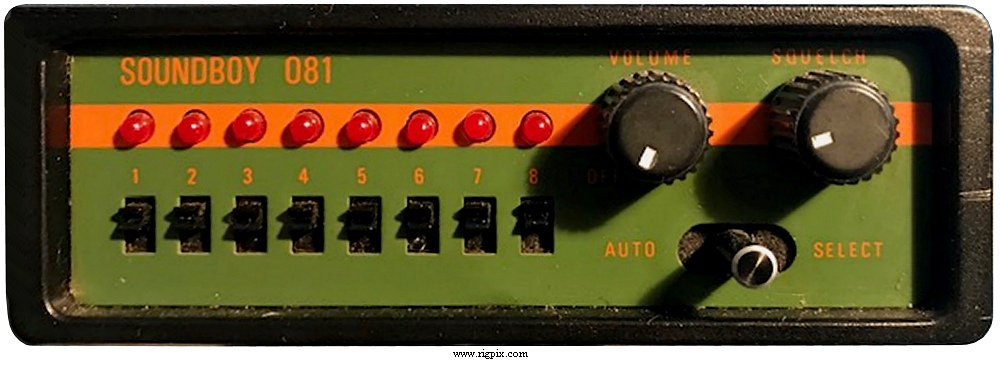

| GENERAL |
| Type: | VHF receiver/scanner |
| Frequency range: | 76-82 / 164-172 MHz |
| Tuning steps: | Channelized |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: |
8 regular @ 16 channels per second
One XTAL per channel
|
| Power supply: | 12-15 VDC (Male barrel jack, center positive) |
| Current drain / power consumption: | Less than 350 mA |
| Antenna impedance / connector: | 50 ohm / DIN41585 (Motorola) |
| Dimensions (W*H*D): | 118*41*164 mm (4.65*1.61*6.46") |
| Weight: | 750 g (1.65 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz - Ceramic filters: Two Murata CFU455D
|
| Sensitivity: | 1 uV @ band centers |
| Squelch sensitivity: | Less than 1 uV (Threshold) |
| Noise figure: | |
| Selectivity: | 20 KHz (-6 dB)
40 KHz (-40 dB) |
| Image rejection: | |
| AF output power / speaker: | 350 mW at ?% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 3.2-16 ohm |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1979-1980 (Discontinued) |
| Additional info: |
Main PCB: 8-081-005 by Marukura
Sub PCB: 8-081-006 - Switches and LEDs board
New price, 1979 in Sweden: SEK 695:-
|
| Related documents: |
AF amplifier: M51513L
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
