| GENERAL |
| Type: | VHF/UHF receiver/scanner |
| Frequency range: |
USA
30-50 / 147-174 / 450-520 MHz
Europe
65-85 / 144-174 / 450-520 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: |
10 regular @ 15 channels per second
One XTAL per channel
|
| Power supply: |
USA
Mains: 117 VAC (Male 2-pin jack)
or 13.5 VDC (Male barrel jack, center positive)
Europe
13.5 VDC (Male barrel jack, center positive)
|
| Current drain / power consumption: | ? mA @ 13.5 VDC |

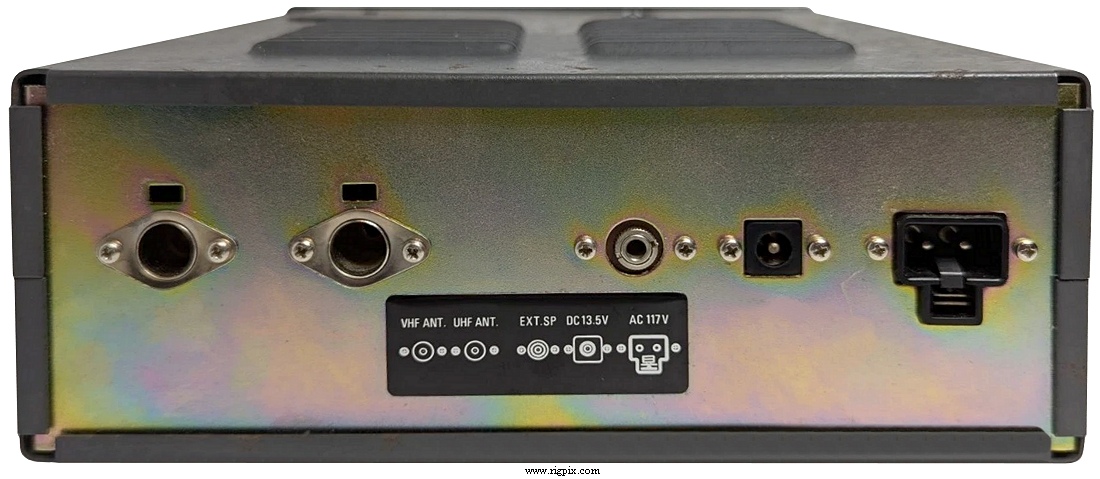

| Antenna impedance / connector: | 50-75 ohm / Two DIN41585 (Motorola) |
| Dimensions (W*H*D): | 180*75*220 mm (7.09*2.95*8.66") |
| Weight: | ? Kg (? lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.7 uV (20 dB S/N) |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 2 W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 197x-198x (Discontinued) |
| Additional info: |
New price 1980 in Sweden: SEK 995:-
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
