| GENERAL |

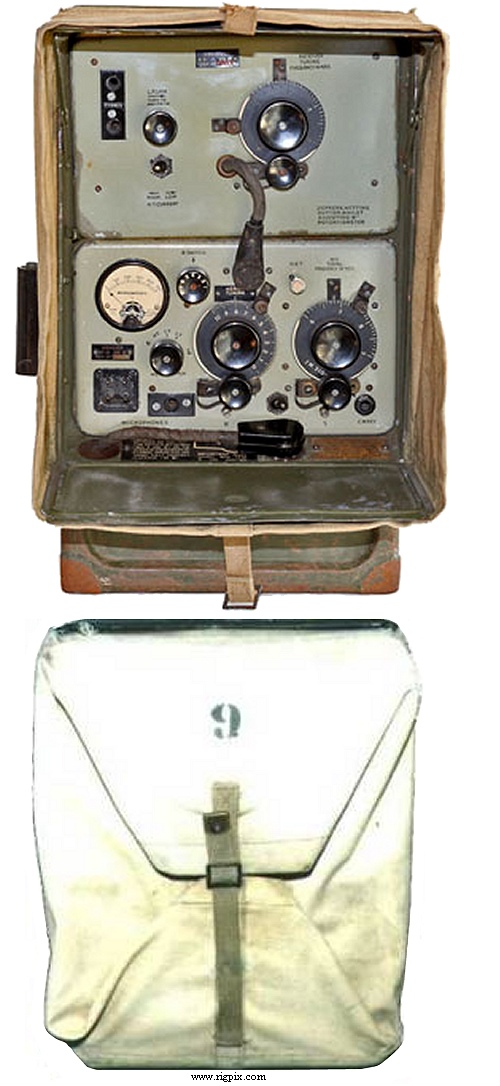

| Type: | Military HF transceiver |
| Frequency range: | 6-9 MHz |
| Tuning steps: | Analog / continuous |
| Frequency stability: | Max ? ppm |
| Mode: | AM (Mark I)
AM / CW (Mark II and III) |
| Channels / memory management: | None |
| Duplex shift / offset: | No |
| Power supply: | 6 VDC "Battle battery" (Vibrator supply)
or hand crank generator |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | Hi-Z / Threads (For whip antenna) |
| Dimensions (W*H*D): | 254*432*203 mm (10*17*8") |
| Weight: | 15.4 Kg (34 lb), complete equipment, ready to go |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 465 KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | 7 KHz (No dB reference) |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 250 mW |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | UK (By PYE Ltd), 1940-1945 (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
