| GENERAL |

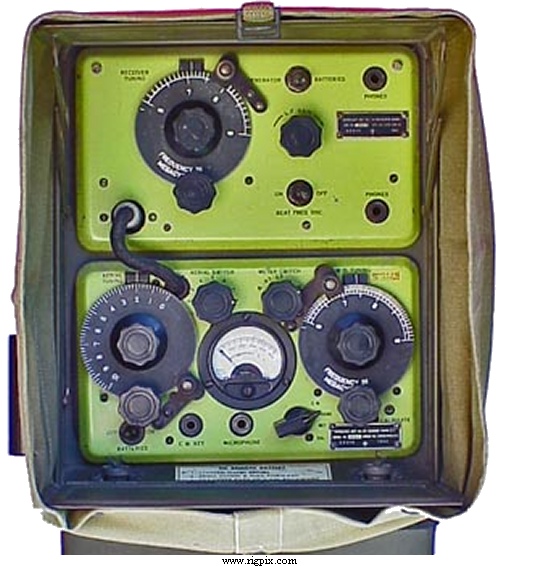

| Type: | Military HF transceiver |
| Frequency range: | 6-9 MHz |
| Tuning steps: | Analog / continuous |
| Frequency stability: | Max ? ppm |
| Mode: | AM / CW |
| Channels / memory management: | None |
| Duplex shift / offset: | No |
| Power supply: | 3 and 162 VDC "Battle battery"
or hand crank generator |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | Hi-Z / Threads (For whip antenna) |
| Dimensions (W*H*D): | 260*450*170 mm (10.2*17.7*6.7") |
| Weight: | 13.1 Kg (29 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 455 KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 250 mW |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1942-1944 (Discontinued) |
| Additional info: |
Ordered by the British Supply Mission as an alternative
production to Wireless Set No. 18.
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
