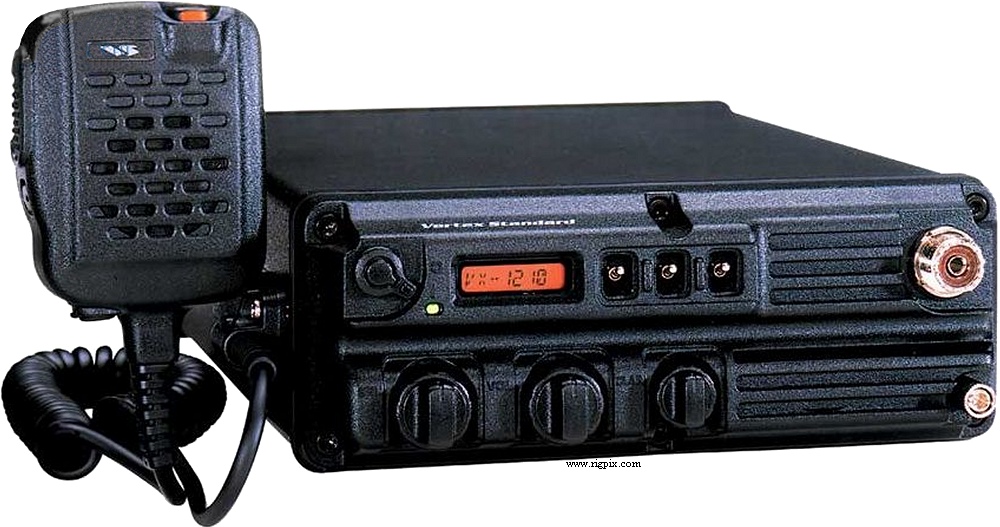

| GENERAL |
| Type: | Military HF transceiver |
| Frequency range: |
TX: 1.6-30 MHz
RX: 0.5-30 MHz
|
| Tuning steps: | 100 Hz, 5 KHz |
| Frequency stability: | ±1 ppm @ -30 to +60°C (-22 to +140°F) |
| Mode: | AM / SSB / CW / AFSK |
| Channels / memory management: |
500 regular with alpha tags
|
| Duplex shift / offset: | |
| Power supply: | 14.4 VDC (Li-Ion battery) |
| Current drain / power consumption: | RX: 100-500 mA
TX: Max 5 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 193*74*274 mm (7.6*2.9*10.8") |
| Weight: | 3.2 Kg (7.1 lb), with FNB-66 Li-Ion pack |
| Other features: |
NB. Built-in antenna coupler. Waterproof handset.
Three custom-programmable Panel Keys. Clarifier ±200 Hz (SSB/CW).
MIL-STD construction. Optional solar panel battery charging
system. Encryption option.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 47.055 MHz
2nd IF: 10.7 KHz
|
| Sensitivity: | SSB/CW: 0.25 uV (10 dB S/N) |
| Squelch sensitivity: | |
| Selectivity: | 2.4 KHz (-6 dB)
5 KHz (-60 dB) |
| Image rejection: | 80 dB |
| AF output power / speaker: | 1.5 W at 10% distortion / 4 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low |
|---|
| AM: | 10 W | 2.5 W |
| SSB (PEP): | 20 W | 5 W |
| CW: | 20 W | 5 W |
|
| Modulation system: |
AM: Early stage (Low level)
SSB: Balanced modulator
|
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -56 dB |
| Microphone impedance / connector: | 2 Kohm / 14-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 2000-201x (Discontinued) |
| Additional info: |
|
