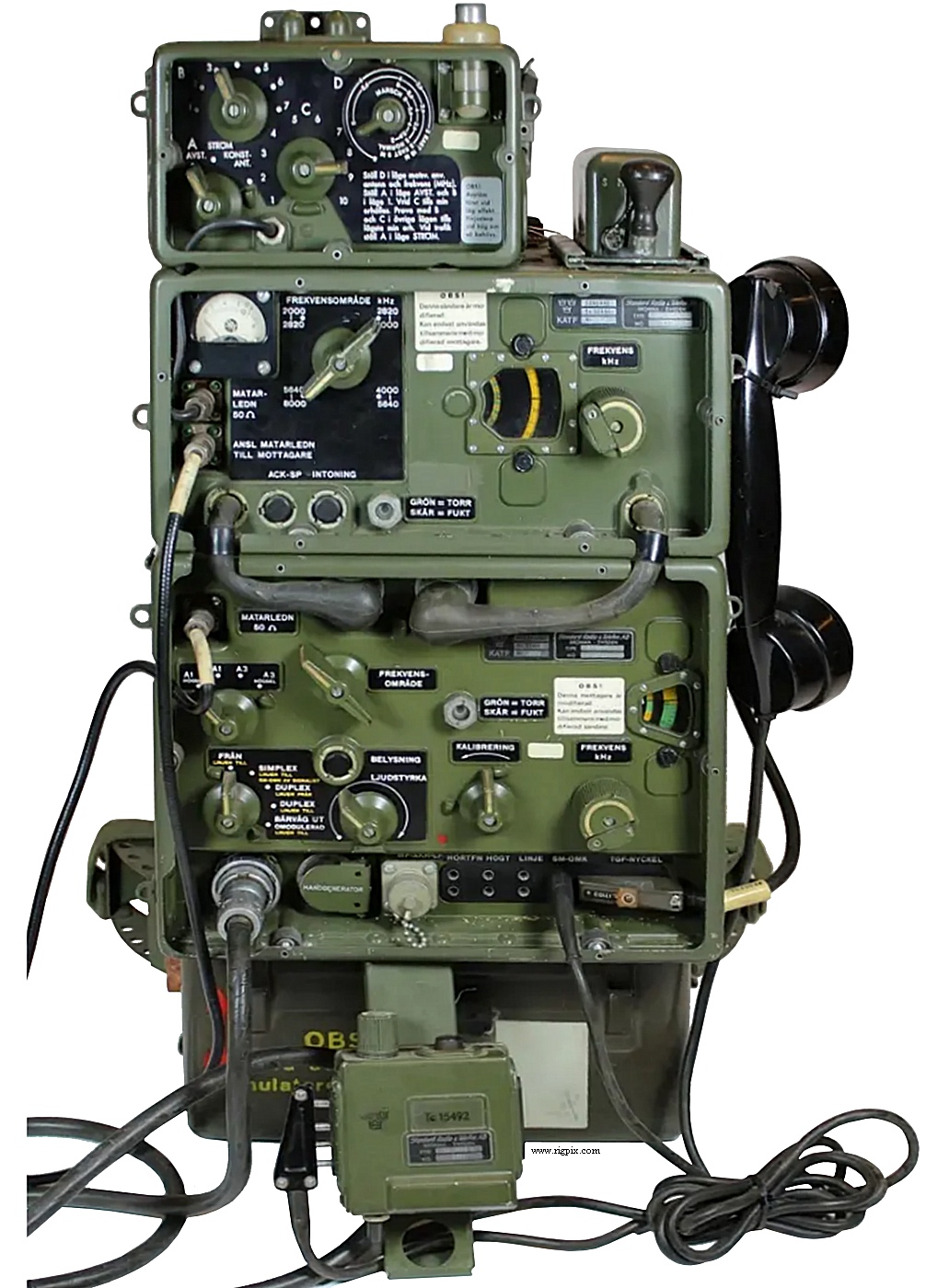

| GENERAL |
| Type: | Military HF transceiver |
| Frequency range: | 2-8 MHz |
| Tuning steps: | Analog / continuous |
| Frequency stability: | Max ? ppm |
| Mode: | AM / CW |
| Channels / memory management: | No |
| Duplex shift / offset: | No |
| Power supply: | 7.2-8 VDC (And 300 V via voltage converter or generator)
or 12/24 VDC vehicle supply with model 102 converter |
| Current drain / power consumption: | RX: 1.8 A
TX: 3.3 A @ 12 VDC |
| Antenna impedance / connector: | - / Fibreglass whip |
| Dimensions (W*H*D): | Receiver: 277*217*196 mm (11.9*8.54*7.71")
Transmitter: 277*186*196 mm (11.9*7.32*7.71")
Antenna unit: 170*110*160 mm (6.69*4.33*6.3") |
| Weight: | Receiver: 6.9 Kg (15.21 lb)
Transmitter: 4.9 Kg (10.8 lb)
Antenna unit: 1.2 Kg (2.64 lb) |
| Other features: |
50 KHz XTAL calibrator.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion conversion superheterodyne (2-4 MHz)
IF: 500 KHz
Double conversion conversion superheterodyne (4-8 MHz)
1st IF: 2-3 or 3-4 MHz variable
2nd IF: 500 KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | 5 and 2 KHz selectable |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / No internal speaker |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 8 W
Low: 500 mW
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Sweden (By SRT), 1958-196x (Discontinued) |
| Additional info: |
21 tubes.
Waterproof and submersible.
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
