| GENERAL |
| Type: | Military HF/VHF transceiver |
| Frequency range: | 1.6-60 MHz |
| Tuning steps: | ? Hz |
| Frequency stability: | Max ? ppm |
| Mode: | AM / FM / SSB / Data / DV (MELP, LPC-10 & CVSD) |
| Channels / memory management: |
75 net presets
|
| Duplex shift / offset: | |
| Power supply: | 20.5-32 VDC (26 VDC nominal) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 267*81*343 mm (10.5*3.5*13.2"), with battery case |
| Weight: | 4.7 Kg (10 lb), without batteries |
| Other features: |
Encryption. MIL-STD-188-110B App. C och App. B,
39-tone / STANAG 4285 / STANAG 4415 / STANAG 4539
ALE. STANAG 4538 FLSU, MIL-STD-188-141B Appendix A.
GPS option
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: | SSB: 0.5 uV (10 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | 80 dB |
| AF output power / speaker: | 15 mW at ?% distortion / External 1000 ohm headset |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| AM (PEP): | 20 W | 5 W | 1 W |
| FM: | 10 W | 5 W | 1 W |
| SSB (PEP): | 20 W | 5 W | 1 W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | ? ohm / 6-pin |
| Microphone input level: | 1.5 mV @ 150 ohm or 0 dBm @ 600 ohm for full rated output |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA (By Harris), 2004?-20xx |
| Additional info: |

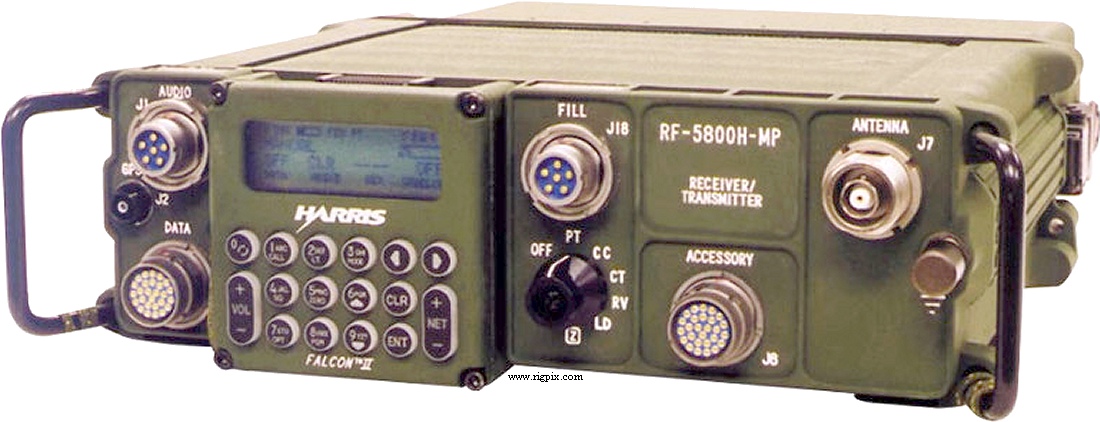

Originally a Harris RF-5800H-MP "Falcon II", imported
for the swedish army.
|
