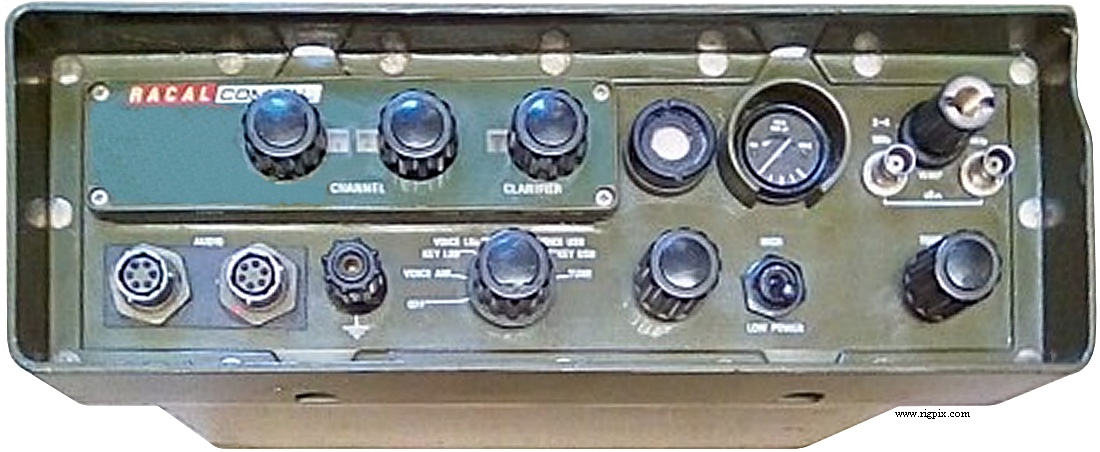

| GENERAL |
| Type: | Military HF transceiver |
| Frequency range: | 2-8 MHz |
| Tuning steps: | Channelized |
| Frequency stability: | Less than 200 Hz @ 0 to 40°C (32 to 104°F) |
| Mode: | AM / SSB / CW |
| Channels / memory management: |
49 regular
XTAL controlled
|
| Duplex shift / offset: | No |
| Power supply: |
18 VDC (NiCd battery pack)
or 12/24 VDC vehicle power unit (MA.926)
or mains: 100-125/200-250 VAC with power unit (MA.927)
|
| Current drain / power consumption: | RX: ? mA
TX: 1.5 A (Average) |
| Antenna impedance / connector: | Hi-Z / Threads (For whip antenna)
50 ohm / Two BNC |
| Dimensions (W*H*D): | 312*111*394 mm (12.31*4.38*15.5") |
| Weight: | 9.75 Kg (21.5 lb), complete operational set |
| Other features: | Built-in antenna tuner. Clarifier ±250 Hz. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: | 1 uV (15 dB S/N) |
| Squelch sensitivity: | |
| Selectivity: |
AM
7 KHz (-6 dB)
25 KHz (-55 dB)
SSB
2.2 KHz (-6 dB)
5 KHz (-40 dB)
|
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / No internal speaker |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low |
|---|
| AM (Carrier): | 5 W | 1 W |
| SSB (PEP): | 20 W | 5 W |
| CW: | 15 W | 3.5 W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -40 dB |
| Microphone impedance / connector: | ? ohm / Two 6-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | UK, 19xx-19xx (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
