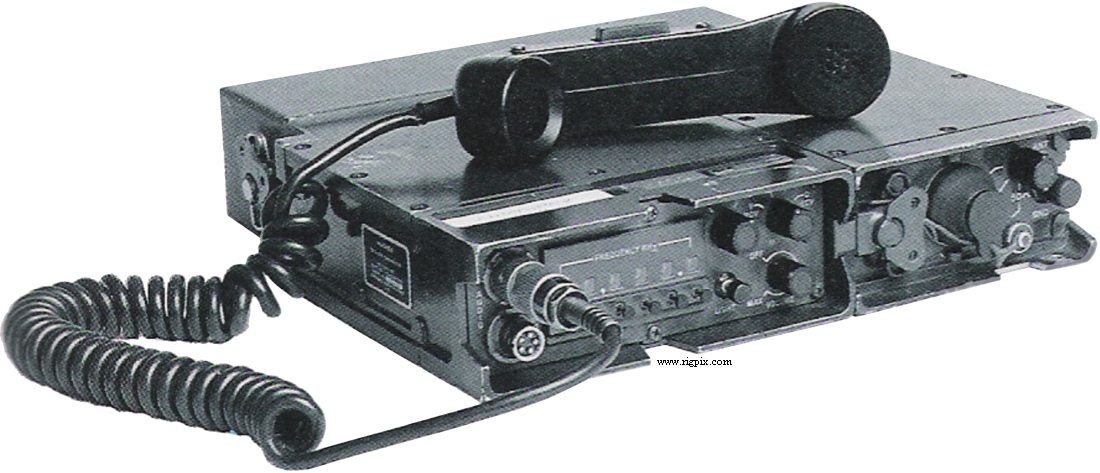

| GENERAL |
| Type: | Military HF transceiver |
| Frequency range: | 2-30 MHz |
| Tuning steps: | 100 Hz, 1 / 10 / 100 KHz, 1 / 10 MHz |
| Frequency stability: | ±1 ppm @ -46 to +71°C (-51 to +160°F) |
| Mode: | SSB / CW / Data |
| Channels / memory management: | No |
| Duplex shift / offset: | No |
| Power supply: | 20-32 VDC |
| Current drain / power consumption: | RX: 200 mA @ 24 VDC
TX: Max 3.5 A @ 24 VDC |
| Antenna impedance / connector: | 50-75 ohm / BNC |
| Dimensions (W*H*D): | 267*66*318 mm (10.5*2.6*12.5") |
| Weight: | 7.8 Kg (17.2 lb), with batteries |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 75 MHz
2nd IF: 5 MHz
|
| Sensitivity: | 0.7 uV (10 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: | 2.5 KHz (-3 dB)
6 KHz (-60 dB) |
| Image rejection: | 70 dB |
| AF output power / speaker: | 25 mW at 5% distortion / 500 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 20 W (PEP) |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | 150 ohm / Two 5-pin |
| Microphone input level: | 6 mV RMS |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA (By Hughes), 1978-198x (Discontinued) |
| Additional info: |
This is originally an american AN/PRC-104, imported
for the swedish army.
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
KV-DART 301
|
Data terminal
|
|
