| GENERAL |

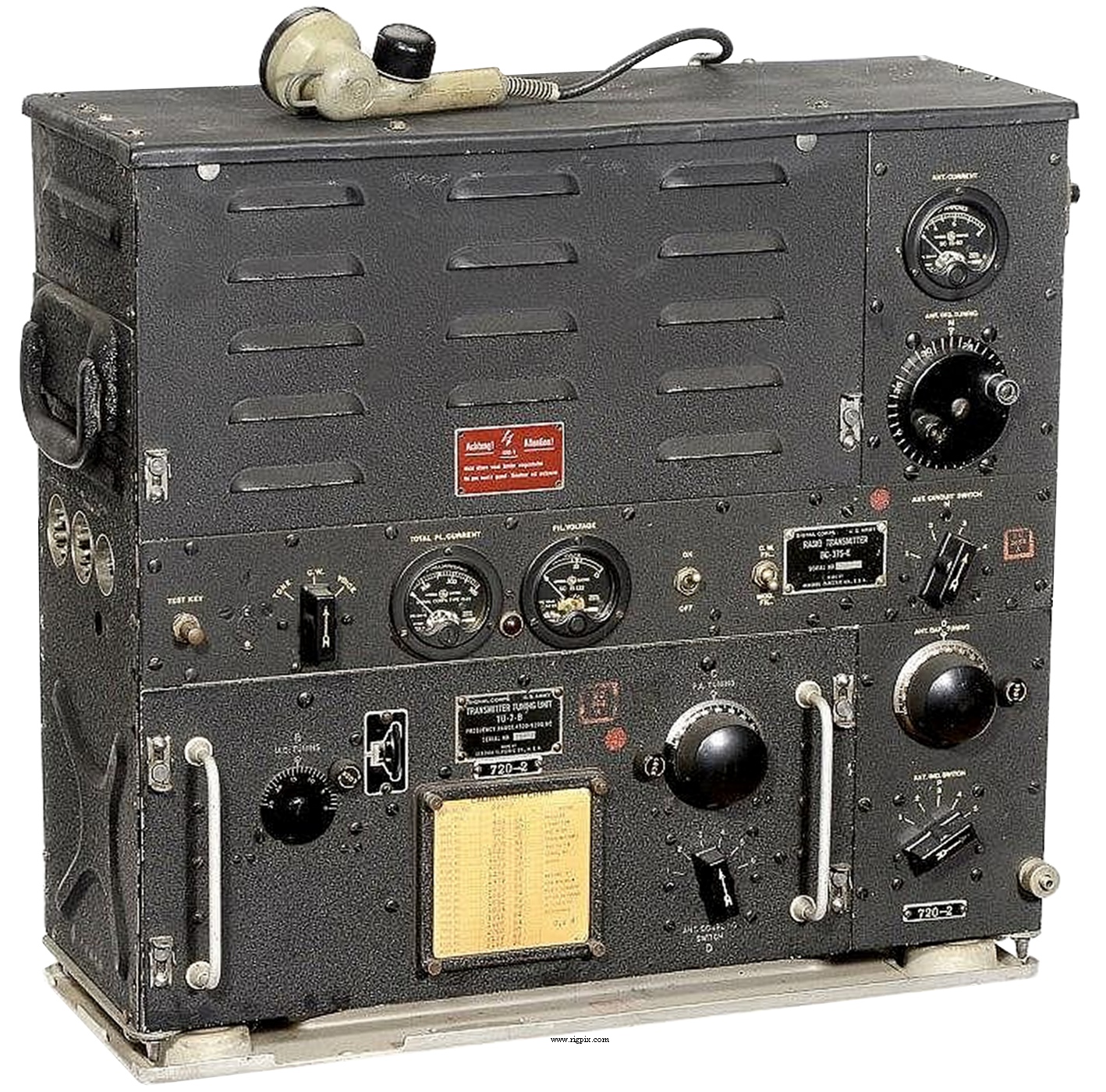

| Type: | Military HF transmitter |
| Frequency range: | 0.15-12.5 MHz (By plug-in tuning units) |
| Tuning steps: | Analog / continuous |
| Frequency stability: | |
| Mode: | AM / CW |
| Channels / memory management: | None |
| Power supply: | 24-28 VDC (Dynamotor supply) |
| Current drain / power consumption: | ? A |
| Antenna impedance / connector: | ? ohm / ? |
| Dimensions (W*H*D): | 587*549*236 mm (23.12*21.6*9.3") |
| Weight: | 23.9 Kg (52.75 lb), without tubes or tuning units |
| Other features: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
50-90 W (Depending on band segment)
|
| Modulation system: | Push-pull, class B |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA (By General Electric), 1941-194x (Discontinued) |
| Additional info: |
Used by the US airforce, mainly in bombers. Often paired with BC-348.
Surplus price 1947 in the US: $17.50
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
BC-306A
PE-73C
TU-1B
TU-2B
TU-3B
TU-4B
TU-5B
TU-6B
TU-7B
TU-8B
TU-9B
TU-10B
TU-26B
|
Antenna tuning unit
Dynamotor
Plug-in tuning unit, 150-260 KHz
Plug-in tuning unit, 260-400 KHz
Plug-in tuning unit, 400-800 KHz
Plug-in tuning unit, 0.8-1.5 MHz
Plug-in tuning unit, 1.5-3 MHz
Plug-in tuning unit, 3-4.5 MHz
Plug-in tuning unit, 4.5-6.2 MHz
Plug-in tuning unit, 6.2-7.7 MHz
Plug-in tuning unit, 7.7-10 MHz
Plug-in tuning unit, 10-12.5 MHz
Plug-in tuning unit, 200-500 KHz
|
|
