| GENERAL |

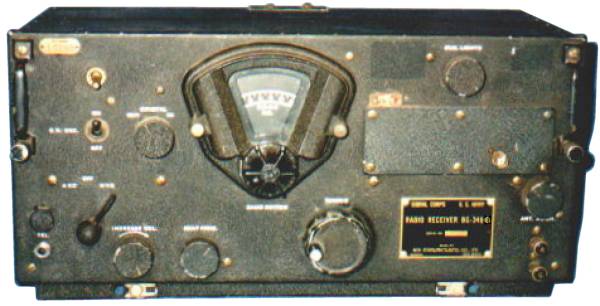

| Type: | Military HF receiver |
| Frequency range: |
0.2-0.5 / 1.5-18 MHz in six bands
0.2-0.5 MHz (Excluded on the B and C versions)
1.5-3.5 MHz
3.5-6.0 MHz
6.0-9.5 MHz
9.5-13.5 MHz
13.5-18.0 MHz
|
| Tuning steps: | Analog / continuous |
| Frequency stability: | |
| Mode: | AM / CW |
| Channels / memory management: | |
| Power supply: | 28 VDC (Dynamotor supply) |
| Current drain / power consumption: | Max 3 A |
| Antenna impedance / connector: | ? ohm / ? |
| Dimensions (W*H*D): | 457*241*267 mm (18*9.5*10.5") |
| Weight: | 20 Kg (44 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 915 KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 193x-194x (Discontinued) |
| Additional info: |
Airborne receiver, made in several versions by manufacturers including:
Belmont Radio - H, K, L, R & S
RCA - B, C & O
Stromberg-Carlson - E, M & P
Wells-Gardner - J, N & Q
Surplus price 1947 in the US: $49.50
|
| Related documents: |
Schematic (69 Kb)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
