| GENERAL |
| Type: | Military VHF radar receiver |
| Frequency range: |
106 MHz
|
| Tuning steps: | Fixed |
| Frequency stability: | |
| Mode: | AM (Pulse) |
| Channels / memory management: | |
| Power supply: | Mains: 110-120 VAC |
| Current drain / power consumption: | ? |
| Antenna impedance / connector: | ? ohm / ? |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 20 MHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | No audio output |
| External speaker connector: | No audio output |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1940-194x (Discontinued) |
| Additional info: |

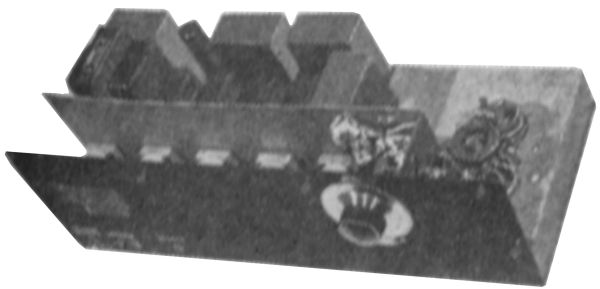

This is the receiver unit of the SCR-270 early radar system.
Surplus price 1947 in the US: $19.95
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
