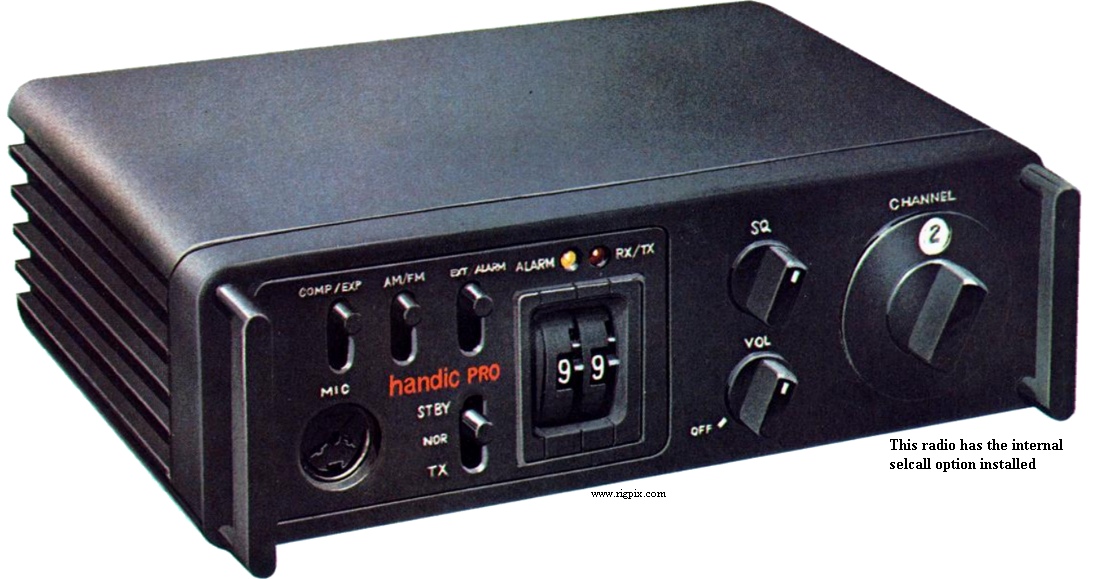

| GENERAL |
| Type: | Citizen band / semi-professional transceiver |
| Frequency range: | 27-31 MHz (Any 300 KHz segment, depending on alignment)) |
| Channels / tuning steps: | 9 |
| Mode: | AM (FM option) |
| Frequency control: | One XTAL per channel |
| Frequency stability: | Max ? ppm |
| Clarifier or Delta tune: | No |
| Power supply: | 13.2 VDC (Male 6-pin Jones connector) |
| Current drain / power consumption: | RX: 150 mA (No signal)
TX: 850 mA (No modulation) |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 170*60*210 mm (6.69*2.36*8.27") |
| Weight: | 1.53 Kg (3.37 lb) |
| Other features: | Speech compressor. Selcall option. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM: 0.5 uV 10 dB S/N)
FM: 0.5 uV (20 dB noise quieting)
|
| Squelch sensitivity: | |
| Selectivity: | 60 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 5 W at ?% distortion / No internal speaker |
| External speaker connector: | TS "Minijack" (3.5 mm, on pigtail), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 3.5 W |
| Modulation system: | |
| Max FM deviation (Factory set): | ±1.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 6-pin DIN |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 1980-198x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
AF amplifier: TA7222AP
FM-IF: MC3357
RF final: 2SC2075
|
| Market(s) / Approval(s): |
Sweden
Televerket: RI 3015/80
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
S-12
SE-900
SI-99
?
|
External selcall unit
External 5-tone selcall unit
Internal 5-tone selcall unit
FM unit
|
|
