| GENERAL |

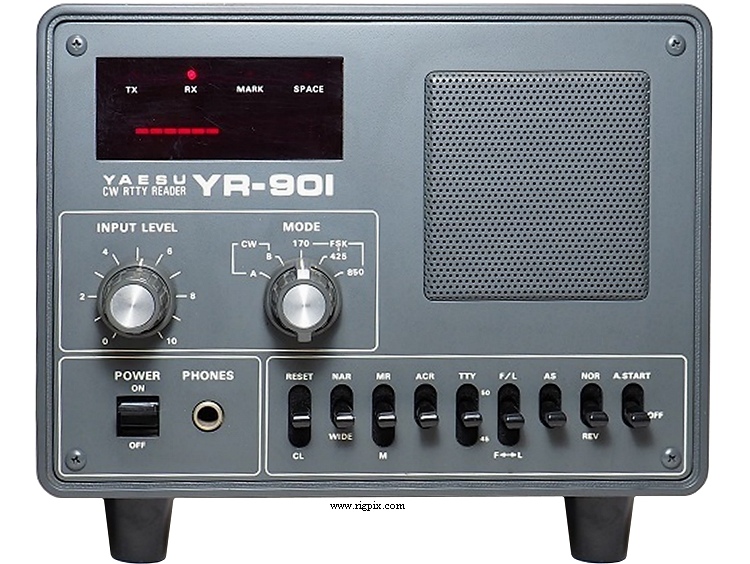

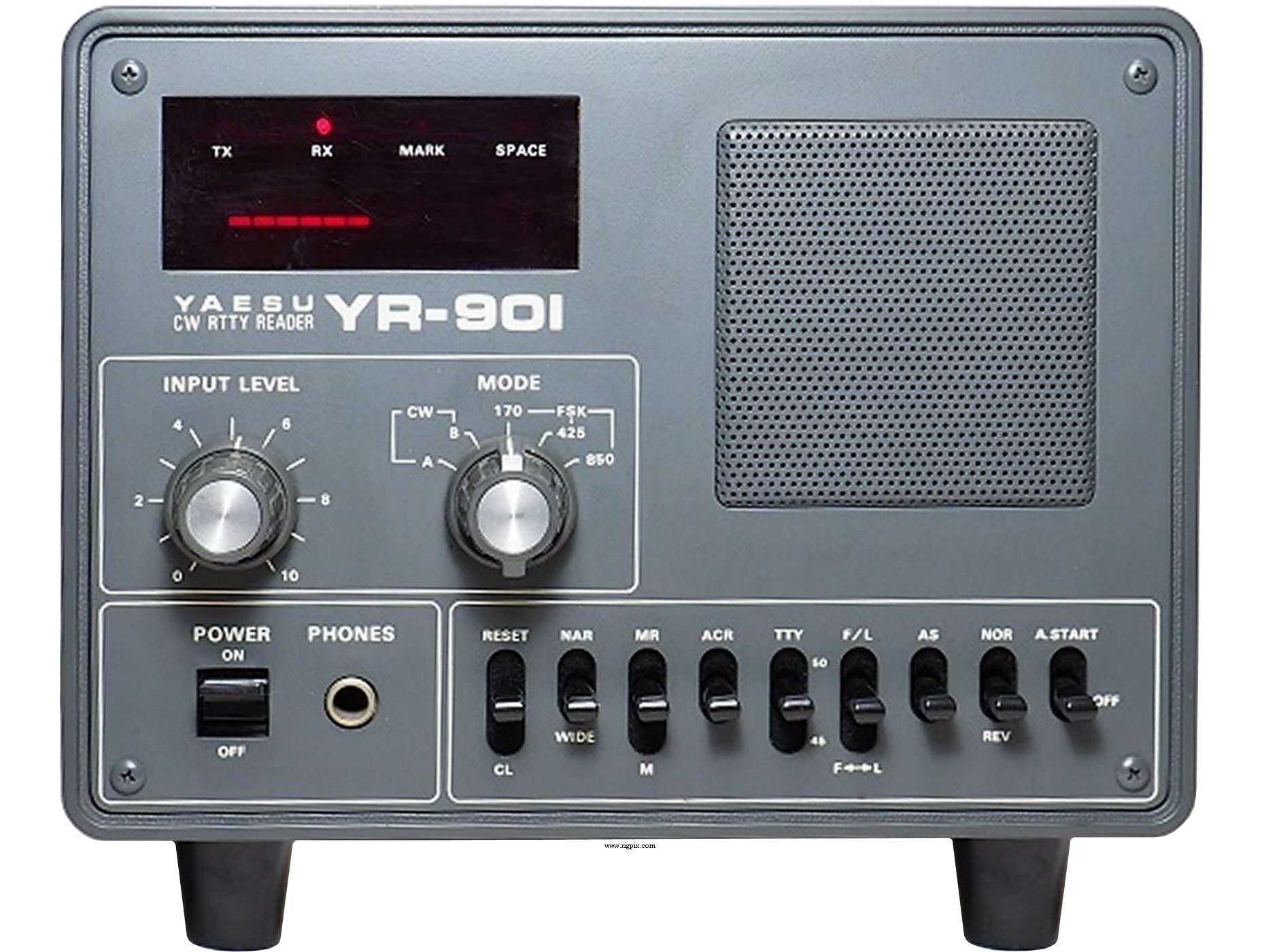

| Type: | Amateur CW / RTTY terminal unit |
| CPU: | uPD8080AFC @ 2 MHz |
| System ROM: | ? KB |
| System RAM: | 512 Bytes (Video display memory) |
| Computer ports / Speed: | None |
| Power supply: | Mains: 100 / 110 / 117 / 200 / 220 / 234 VAC |
| Current drain / power consumption: | Max 40 VA |
| Dimensions (W*H*D): | 154*208*323 mm (6.06*8.19*12.72") |
| Weight: | 6 Kg (13.23 lb) |
| Other features: |
Composite video output (TV RF option). 32 characters * 16 lines.
20 mA current loop teletype connection. Built-in 4 W speaker.
|
|
|
|
|
| RADIO COMM'S SECTION |
| Modes: |
RTTY (170 / 425 / 850 Hz shift)
CW
|
| GPS / APRS functions: | No |
| Mailbox: | No |
| Radio ports: |
Various
|
| Data rate over radio: | 45-75 bd |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1978-1980 (Discontinued) |

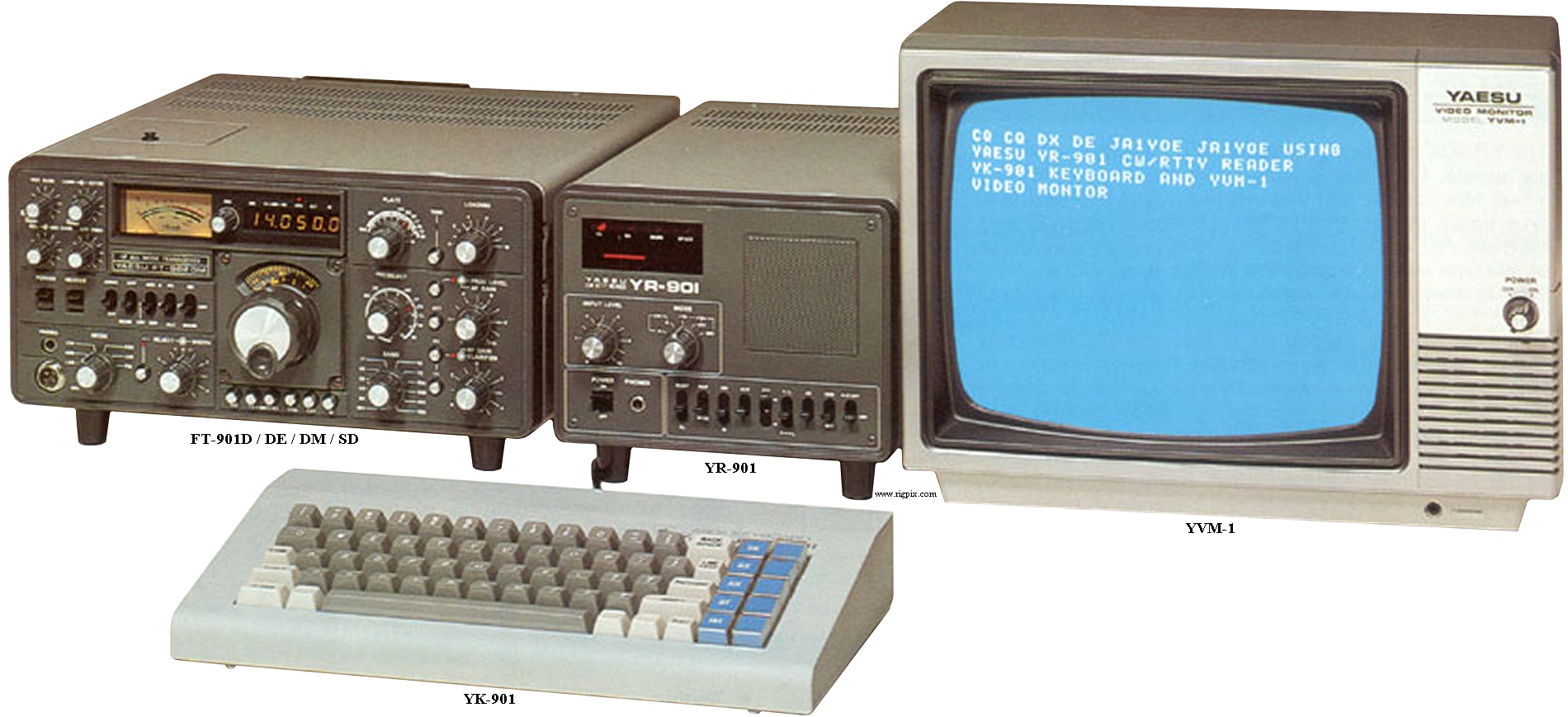

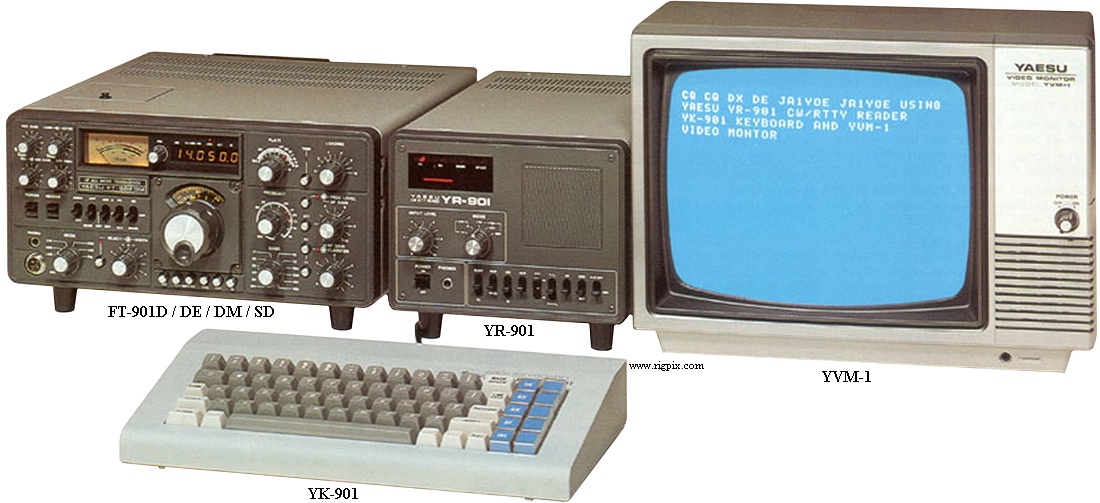

| Additional info: | Primarily made for Yaesu's FT-901 series. |
| Related documents: | User manual (709 KB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
YK-901
YVM-1
?
|
ASCII keyboard
Video monitor
TV RF modulator
|
|
