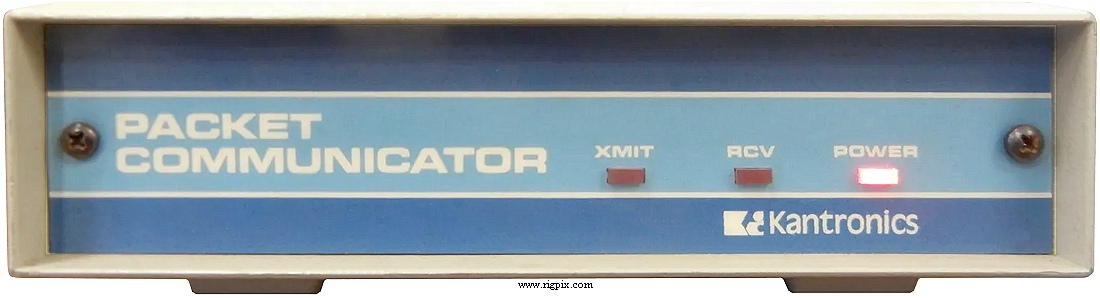

Kantronics KPC-1 (Kantronics Packet Communicator)
SPECIFICATIONS
| GENERAL |
| Type: | Amateur packet TNC |
| CPU: | ? |
| System ROM: | ? KB |
| System RAM: | ? KB |
| Computer ports / Speed: | RS2323C (DB25) / 300, 600, 1200, 1800, 2400, 4800, 9600 bd
(RS-232C or TTL level selectable) |
| Power supply: | 10-14 VDC (Male barrel jack, center positive) |
| Current drain / power consumption: | Less than 330 mA |
| Dimensions (W*H*D): | 152*45*203 mm (6*1.75*8") |
| Weight: | 1.02 Kg (2.25 lb) |
| Other features: | |
|
|
|
|
| RADIO COMM'S SECTION |
| Modes: |
Packet
Wefax
KISS
Host
|
| GPS / APRS functions: | No |
| Mailbox: | ? KB |
| Radio ports: |
1 (5-pin DIN)
|
| Data rate over radio: | 1200 bd |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1985-1986 (Discontinued) |
| Additional info: |
This was Kantronics' first packet TNC.
Firmware versions: 1.0 to 5.0.
New price, may 1985 in the US: $389.95 (MSRP)
New price, january 1986 in the US: $219.00 (MSRP)
|
| Related documents: |
Installation manual (1.9 MB)
Operations manual (2.7 MB)
Commands manual (2.6 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
|
