| GENERAL |
| Type: | Amateur multimode decoder |
| CPU: | Zilog Z8800 |
| System ROM: | ? KB |
| System RAM: | ? KB |
| Computer ports / Speed: | RS-232C / 110-4800 bd |
| Power supply: | Mains: 115 / 230 VAC (3-pin IEC C14 connector) |
| Current drain / power consumption: | Max 25 W |
| Dimensions (W*H*D): | 416*89*324 mm (16.38*3.5*12.75") |
| Weight: | 4.08 Kg (9 lb) |
| Other features: |
VGA output with 80 columns and 26 lines of text.
On-screen tuning bar graph. Printer port. Real time clock.
Scope output.
|
|
|
|
|
| RADIO COMM'S SECTION |
Modes
(Depending on version): |
Version 1
Baudot (RTTY)
CW (Morse code)
SITOR A and B
ASCII
VFT
ARQ-E, -E3, M2, -M4 and -S
Swed-ARQ
FEC-A and -S
POL-ARQ
Fax
Packet
Version 2 (v1 production with v2 firmware)
ARQ6-90 added
PACTOR added
ACARS added
Version 5 (v5 production)
ARQ6-90 added
PACTOR added
ACARS added
Version 7 (v7 production. Government or export only)
Baudot (RTTY)
CW (Morse code)
SITOR A and B
ASCII
VFT
Piccolo
ARQ-E, -E3, M2, -M4, -S and -6-90
Swed-ARQ
FEC-A and -S
POL-ARQ
Fax
Packet
Pactor
GMDSS
ACARS
POCSAG
Golay
Version 7.5 (v7 production with v7.5 firmware)
Baudot (RTTY)
CW (Morse code)
SITOR A and B
ASCII
VFT
Piccolo
ARQ-E, -E3, M2, -M4, -S and -6-90
Swed-ARQ
FEC-A and -S
POL-ARQ
Fax
Packet
Pactor
GMDSS
ACARS
|
| GPS / APRS functions: | No |
| Mailbox: | No |

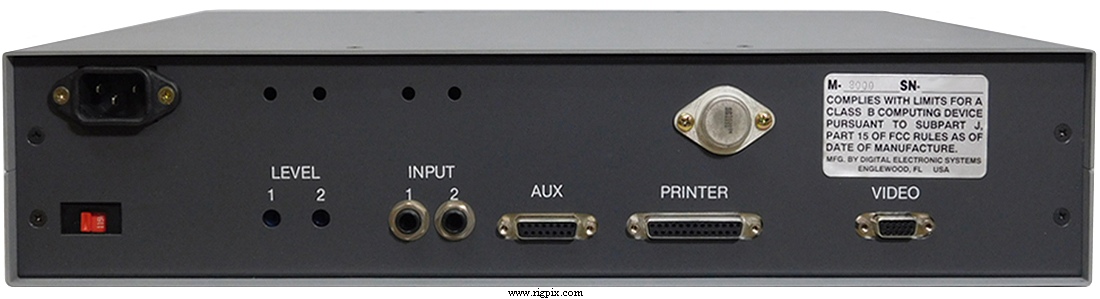

| Radio ports: |
TS jack (6.3 mm / 1/4")
TRS jack (6.3 mm / 1/4")
|
| Data rate over radio: | 45-2400 bd |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA (By DES), 1992-2004 (Discontinued) |
| Additional info: |
New price, august 1993 in the US: $1299.00
New price, april 1994 in the US: $1349.00 (Version 5)
New price, january 1997 in the US: $1399.00 (Version 7)
New price, january 1998 in the US: $1399.00 (Version 7)
New price, december 1998 in the US: $1399.00 (Version 7)
New price, december 1998 in the US: $1599.00 (Version 7.5)
New price, february 1999 in the US: $1399.00 (Version 7.5)
New price, august 2000 in the US: $1299.00 (Version 7.5)
New price, august 2001 in the US: $1399.00 (Version 7)
New price, august 2001 in the US: $1299.00 (Version 7.5)
New price, april 2002 in the US: $1399.00 (Version 7)
New price, april 2002 in the US: $1299.00 (Version 7.5)
New price, march 2005 in the US: $1399.00 (Version 7)
New price, march 2005 in the US: $1299.00 (Version 7.5)
|
| Related documents: |
Installation (46 KB)
User manual v5 (10 MB)
CPU: Zilog Z8800
|
| Modifications and fixes: | |
| Reviews: | Popular Communications: December 1996, page 62 (Version 7) |
| Options / Accessories: |
ROM M-8000v2
?
|
v2 firmware upgrade for M-8000v1
Mounting brackets for 19" rack
|
|
