| GENERAL |

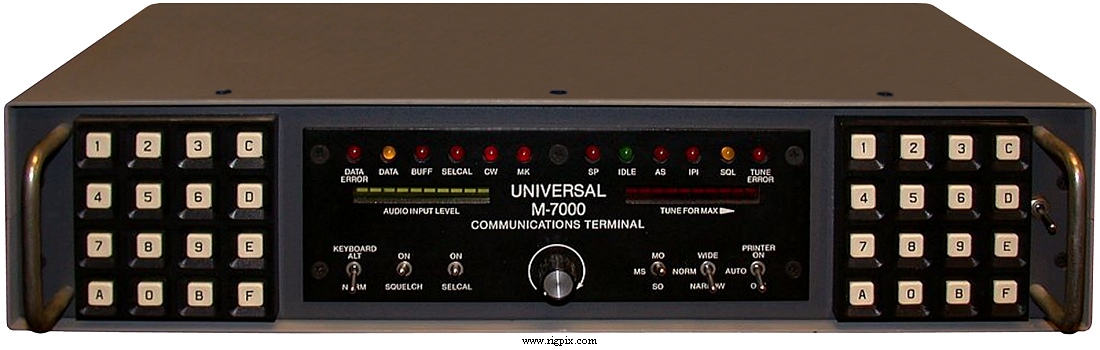

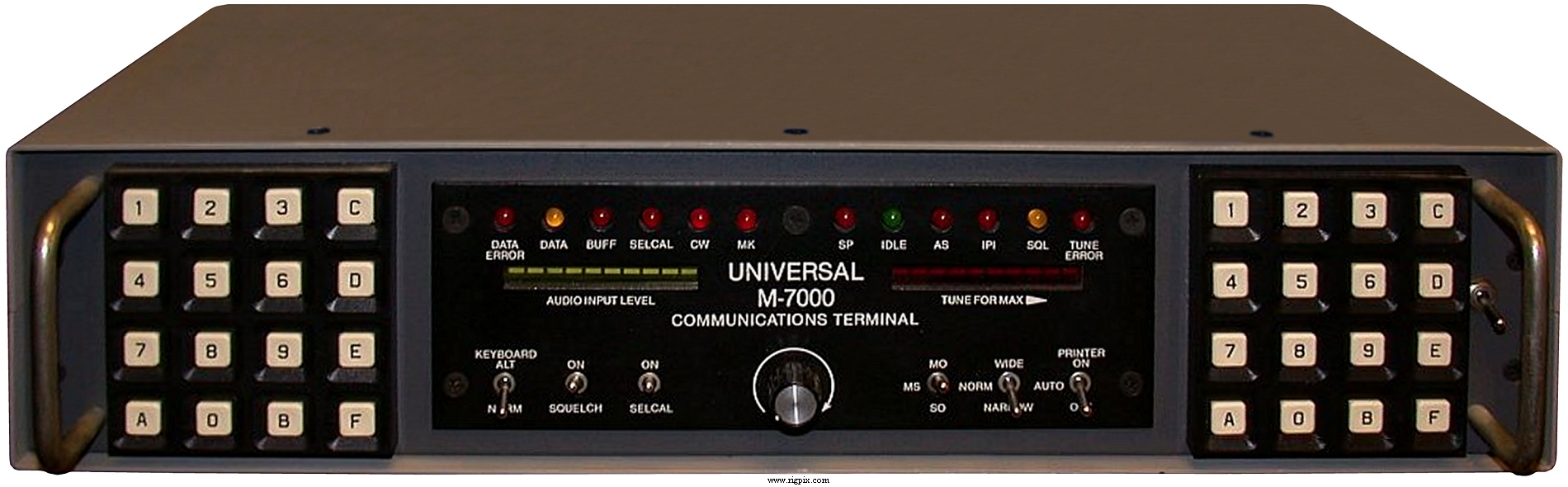

| Type: | Amateur multimode decoder |
| CPU: | Zilog Z8800 |
| System ROM: | 32 KB EPROM |
| System RAM: | 8 KB SRAM |
| Computer ports / Speed: | RS-232C / 110-4800 bd |
| Power supply: | Mains: 115 / 230 VAC (3-pin IEC C14 connector) |
| Current drain / power consumption: | Max 25 W |
| Dimensions (W*H*D): | 416*89*273 mm (16.38*3.5*10.75") |
| Weight: | 4.08 Kg (9 lb) |
| Other features: |
Composite video output with 80 columns and 22 lines of text with
up/down scrolling. Scope output. Printer port. LED tuning bar graph.
|
|
|
|
|
| RADIO COMM'S SECTION |
Modes
(Depending on version): |
Version 1
Baudot (RTTY)
CW (Morse code)
SITOR
ASCII
ARQTOR
FECTOR
TDM2/4
Fax (Dot-matrix printer required)
Packet
Version 2 (v1 production with v2 firmware)
ARQ-E and -E3 added
Version 3 (v1 production with v3 firmware)
ARQ-E, -E3, -S added
FEC-A and FEC-S added
SWED-ARQ added
Version 5 (v5 production)
ARQ-E and -E3 added
Version 6 (v5 production with v6 firmware)
ARQ-S added
FEC-A and FEC-S added
SWED-ARQ added
Version 7 (v7 production)
ARQ-E, -E3, -S added
FEC-A and FEC-S added
SWED-ARQ added
VFT 50 channel added
|
| GPS / APRS functions: | No |
| Mailbox: | No |
| Radio ports: |
Two TS jacks (6.3 mm / 1/4")
|
| Data rate over radio: | 45-1800 bd |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1988-1992 (Discontinued) |
| Additional info: |
New price, august 1988 in the US: $999.00 (No options)
New price, july 1989 in the US: $999.00 (No options)
New price, december 1989 in the US: $999.00 (No options)
New price, august 1990 in the US: $999.00 (No options)
New price, november 1991 in the US: $1159.00 (Including video fax and RTC)
New price, june 1992 in the US: $1159.00 (Including video fax and RTC)
|
| Related documents: |
User manual v2 (13.4 MB)
CPU: Zilog Z8800
|
| Modifications and fixes: | |
| Reviews: | Popular Communications: August 1988, page 12 |
| Options / Accessories: |
M-610
ROM M7000v2
ROM M7000v3
ROM M7000v6
RTC
Video Fax
?
|
External tuning scope with AGC/prefilter
v2 firmware upgrade for M-7000v1
v3 firmware upgrade for M-7000v1
v6 firmware upgrade for M-7000v5
Real time clock
Enables FAX output to the video monitor
Mounting brackets for 19" rack
|
|
