| GENERAL |
| Type: | Amateur multimode decoder |
| CPU: | ? |
| System ROM: | ? KB |
| System RAM: | ? KB |
| Computer ports / Speed: | None |
| Power supply: | ? VDC (Supplied by the ISA-bus) |
| Current drain / power consumption: | ? mA |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? g (? oz) |
| Other features: |

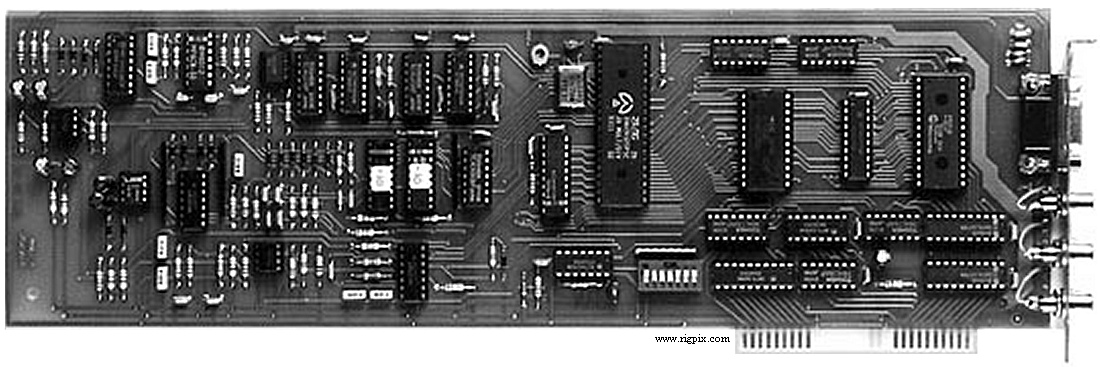

Full size 8-bit ISA-card. Scope output.
|
|
|
|
|
| RADIO COMM'S SECTION |
Modes
(Depending on firmware): |
Version 1
Baudot (RTTY)
CW (Morse code)
SITOR A and B
FEC-A
ARQ-E, -E3, -M2 and -6-90
ASCII
FAX
ACARS
CTCSS/PL
DCS
Version 2
FEC-S added
SWED-ARQ added
POL ARQS added
PACTOR added
POCSAG 1200 and 2400 added
|
| GPS / APRS functions: | No |
| Mailbox: | No |
| Radio ports: |
DB9F
Phono (RCA)
|
| Data rate over radio: | 45-2400 bd |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1994-1999 (Discontinued) |
| Additional info: |
MS-DOS software was included on 3.5" diskette.
New price, april 1994 in the US: $399.95
New price, october 1997 in the US: $399.95
New price, december 1998 in the US: $399.00
New price, february 2000 in the US: $399.95
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | Popular Communications: December 1996, page 62 |
| Options / Accessories: |
|
UP M1200v2
|
Version 2 firmware upgrade kit
|
|
