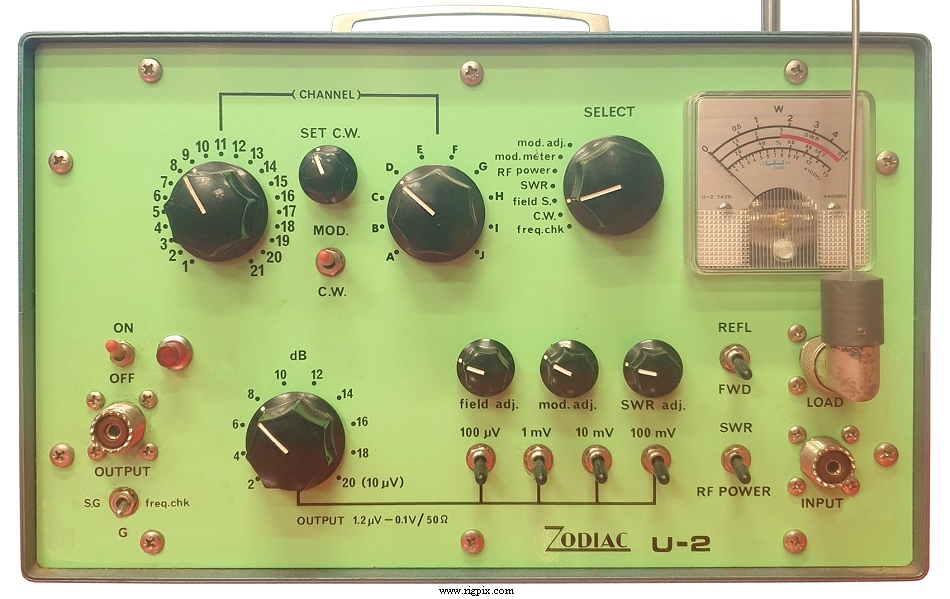

| Type: | CB analyzer |
| Frequency range: | 26.490-30.110 MHz in 10 ranges |
| Power measure ranges: | 5 W |
| Insertion loss: | |
| Impedance / connectors: | 50 ohm / Three SO-239 |
| Power supply: | 12 VDC (Male barrel jack, center positive) |
| Current drain / power consumption: | ? mA |
| Dimensions (W*H*D): | 305*185*150 mm (12*7.3*5.9") |
| Weight: | ? Kg (? lb) |
| Manufactured: | Japan, 19xx-19xx (Discontinued) |
| Other: |
RF Wattmeter
SWR meter
Modulation meter (0-100%)
RF signal generator, 0.12 uV to 100 mV (Modulated or unmodulated)
Field strength meter (1 Volt full scale)
Frequency meter (Not a counter!)
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
