Tritron TS-1003 MkII

A picture of Tritron TS-1003 MkII

SPECIFICATIONS

Type:Frequency counter
Frequency range:Channel A: 10 Hz to 80 MHz (10-20 mV)
Channel B: 20-600 MHz (10-40 mV)
Impedance/connectors:50 ohm / BNC
1 Mohm / BNC
Power supply:Mains: 115 or 230 VAC (Depending on market)
or 4.8 V built-in rechargeable battery pack
Current drain/power consumption:? W @ 230 VAC
Dimensions (W*H*D):180*50*270 mm (7.09*1.97*10.63")
Weight:2.8 Kg (6.17 lb)
Manufactured:Norway, 197x-197x (Discontinued)
Other:1 MHz external timebase option.
Related documents:
Modifications:
Reviews:
Options/Accessories:
- -

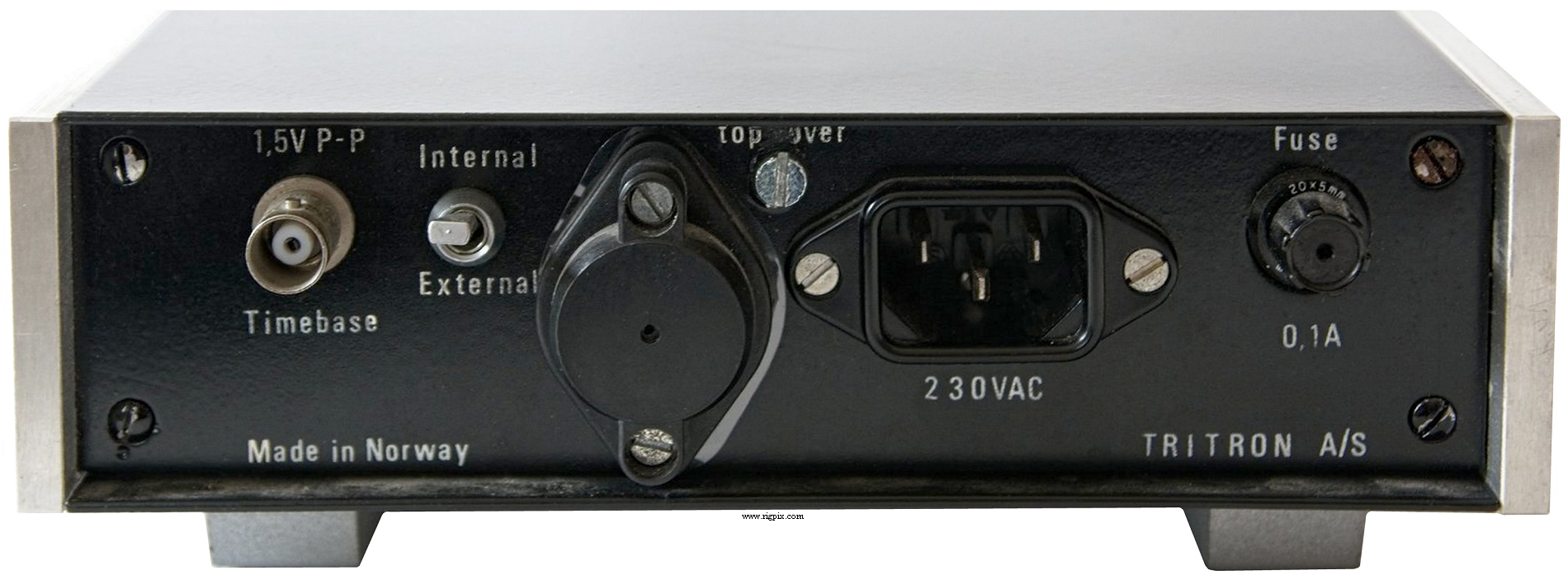

A rear picture of Tritron TS-1003 MkII
