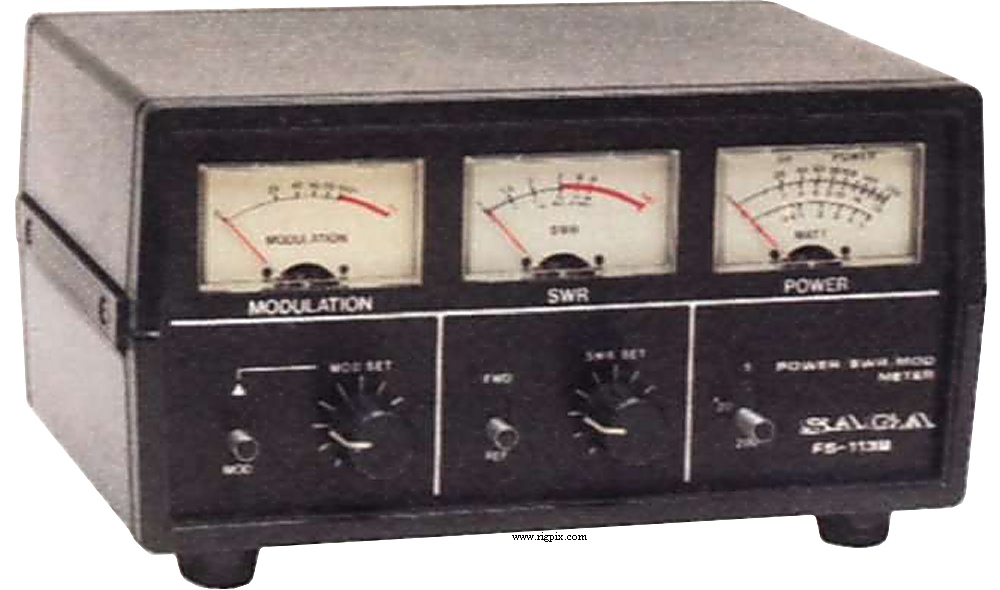

Saga FS-113B
SPECIFICATIONS
| Type: | SWR/Power and modulation meter |
| Frequency range: | 25-30 MHz |
| Power measure ranges: | 0-5 W
0-20 W
0-200 W
(See notes below) |
| Insertion loss: | |
| Impedance / connectors: | 50 ohm / Two SO-239 |
| Power supply: | - |
| Current drain/power consumption: | - |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Manufactured: | 1982-198x (Discontinued) |
| Other: |
Modulation: 0-100%
When this unit first appeared in the 1982 catalog, it was stated
to have power ranges of 10/100/1000 W. However, according

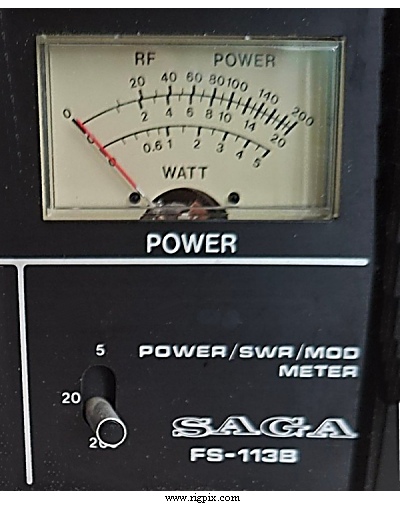

to later photos, they were actually 5/20/200 W. If you look
closely at the fuzzy picture from the catalog itself, you can also
see that 5/20/200 W is the correct specification.
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
|
