Marconi 2019A

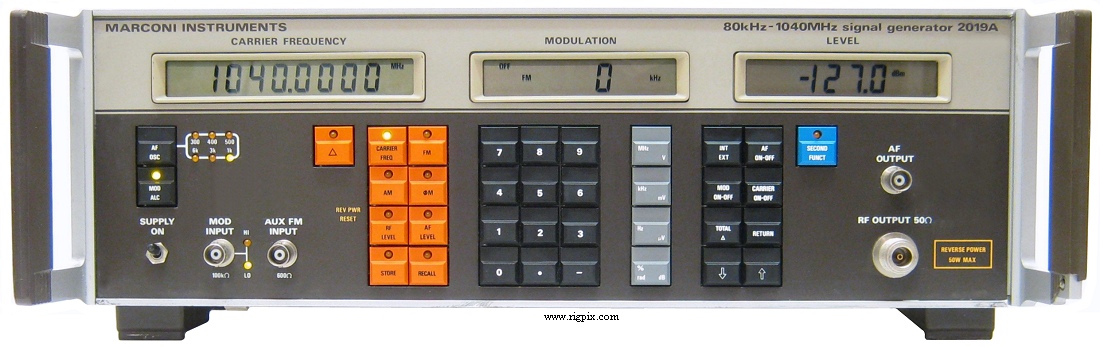

A picture of Marconi 2019A
Type:Signal generator
Frequency range:0.08-1040 MHz
Mode:AM / FM
RF Power Output:+13 dBm to -127 dBm into 50 ohms
Voltage:Mains: 105-120 / 210-240 VAC
Power consumption:Max 85 VA
Dimensions (W*H*D):425*152*525 mm (16.75*6*20.75")
Weight:16 Kg (35 lbs)
Manufactured:England, 1984-198x (Discontinued)
Other:50 W reverse power protection
Related documents:User manual (6.9 MB)
Options/Accessories:
- -
