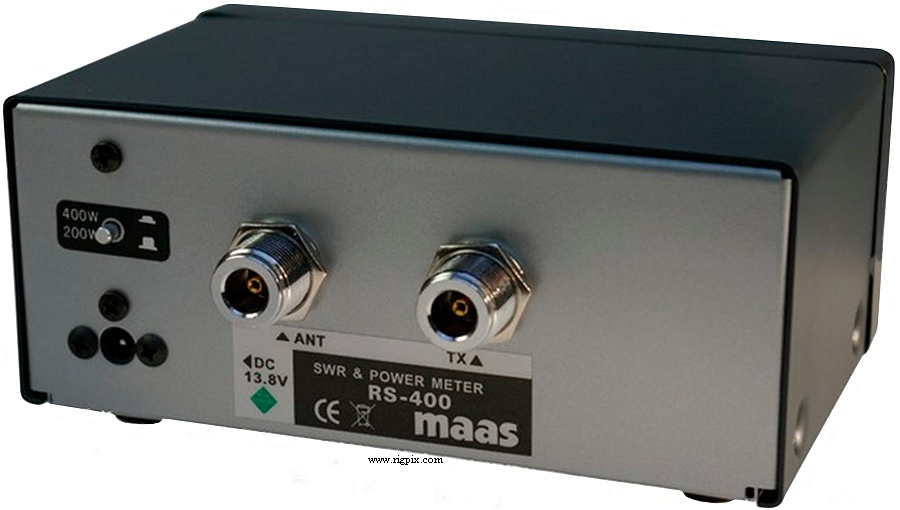

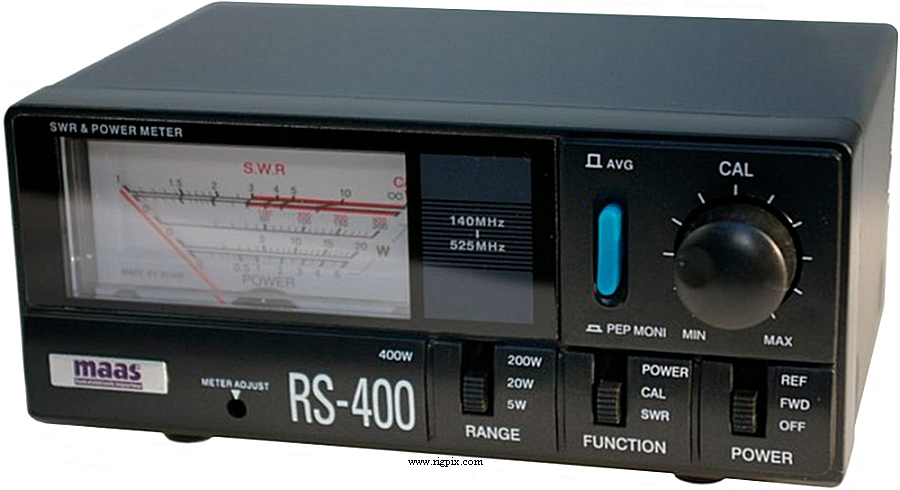

Maas RS-400
SPECIFICATIONS
| Type: | SWR / Power meter |
| Frequency range: | 140-525 MHz |
| Power measure ranges: | 5 W
20 W
200 W
400 W |
| Insertion loss: | Max 0.2 dB |
| Impedance / connectors: | 50 ohm / Two N-jacks |
| Power supply: | 13.8 VDC (Backlight) |
| Current drain / power consumption: | ? mA |
| Dimensions (W*H*D): | 150*65*100 mm (5.9*2.56*3.94") |
| Weight: | 630 g (1.39 lb) |
| Manufactured: | 20xx-20xx (Discontinued) |
| Additional info: |
Accuracy: ±5 to 12.5% of full scale (Depending on range)
Minimum power for accurate SWR measurement is 500 mW
|
| Related documents: |
User manual (117 KB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
|
