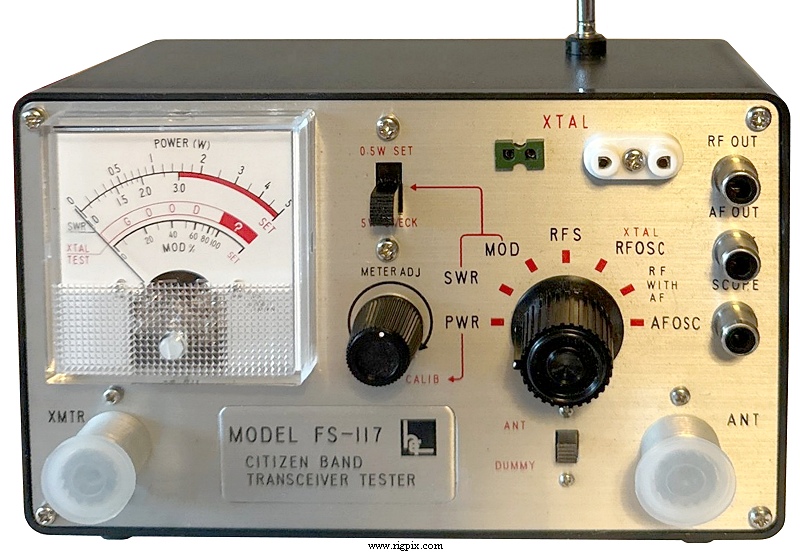

Hansen FS-117 (By Hansen Electric / Hansen Electronics Corporation)
SPECIFICATIONS
| Type: | CB Tester |
| Frequency range: | 27 MHz CB band |
| Power measure ranges: | 5 W |
| Insertion loss: | |
| Impedance / connectors: | 50-52 ohm / Two SO-239 |
| Power supply: | 9 VDC (One 9 V battery) |
| Current drain/power consumption: | ? mA |
| Dimensions (W*H*D): | 179*117*81 mm (7.05*4.6*3.19") |
| Weight: | 780 g (1.72 lb) |
| Manufactured: | Japan, 197x-19xx (Discontinued) |
| Other: |
Can measure:
Power: 0-5 W average (±10%)
SWR
Modulation degree: 0-100%
Relative field strength
Other features:
Crystal tester (Good or bad)
27 MHz RF oscillator with 1 KHz AF tone
Built-in 5 W dummy load
|
| Related documents: | User manual (1.1 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
|
