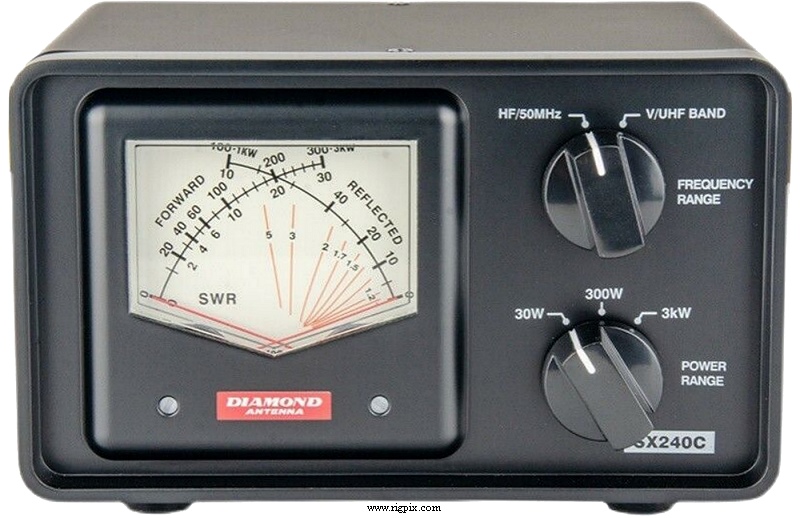

| Type: | SWR / Power meter |
| Frequency range: | 1.8-54 / 140-170 MHz (Dual sensors) |
| Power measure ranges: | 30 W
300 W
3 KW (HF band only) |
| Insertion loss: | |
| Impedance / connectors: |
HF/6 m: 50 ohm / Two SO-239
VHF/UHF: 50 ohm / Two SO-239
|
| Power supply: | 11-15 VDC (Male barrel jack), for backlite |
| Current drain/power consumption: | ? mA |
| Dimensions (W*H*D): | 170*115*150 mm (6.69*4.53*5.91") |
| Weight: | 1.35 Kg (2.98 lb) |
| Manufactured: | Japan, xxxx-202x |
| Other: |
Cross needle type.
Accuracy: ±10% of full scale.
Minimum power for accurate SWR measurement is 3 W.
|
| Related documents: | User manual (2.9 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
