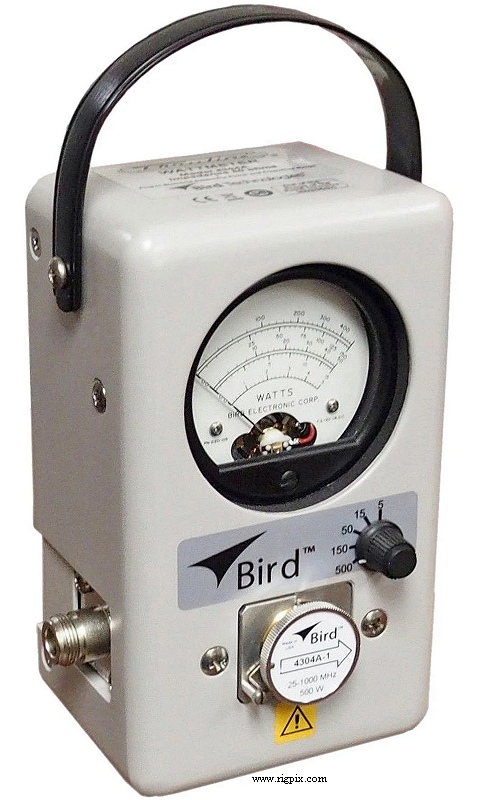

Bird 4304A "Thruline"
SPECIFICATIONS
| Type: | Directional wattmeter |
| Frequency range: | 25-1000 MHz (Broadband element "coupler/plug/slug") |
| Power measure ranges: | 5 W
15 W
50 W
150 W
500 W (25-800 MHz only) |
| Insertion loss: | 0.1-0.15 dB |
| Impedance / connectors: | 50 ohm / Various QC (Quick Change) connectors |
| Power supply: | - |
| Current drain/power consumption: | - |
| Dimensions (W*H*D): | 102*175*92 mm (4.02*6.89*3.3.62") |
| Weight: | 1.8 Kg (4 lb) |
| Manufactured: | USA, 19xx-20xx |
| Additional info: | |
| Related documents: |
User manual (684 KB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
|
