| GENERAL |

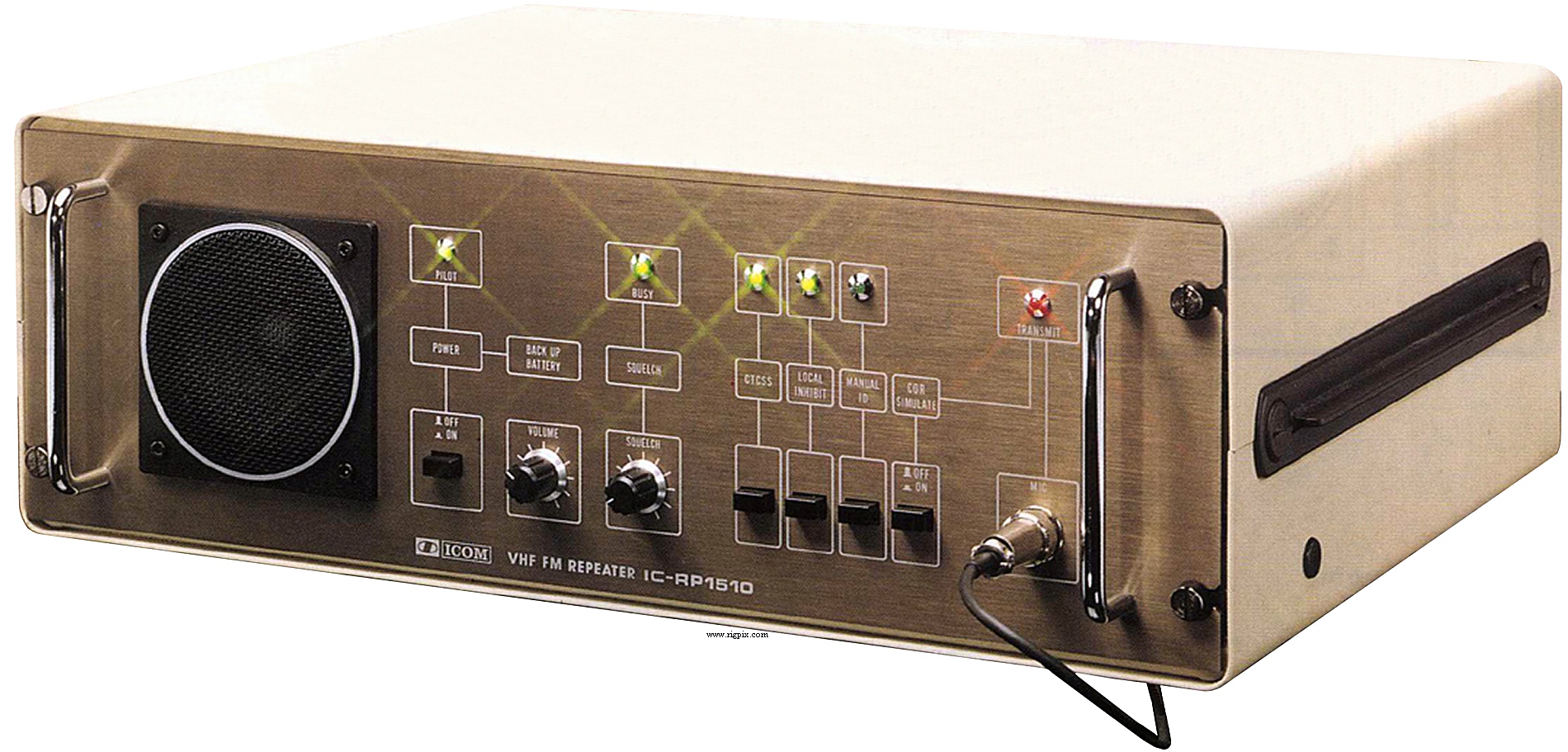

| Type: | Amateur VHF repeater |
Frequency range
depending on version: |
#01 and #02: 138-150 MHz
#03 and #04: 150-174 MHz
|
Channel spacing
depending on version: | #01 and #03: 5 KHz
#02 and #04: 12.5 KHz |
| Frequency stability: | ±5 ppm @ -10 to +60°C (14 to 140°F) |
| Mode: | FM |
| Channels / memory management: | |
| Repeater shift / offset: | Programmable |
| Signalling: | CTCSS/PL. DTMF. |
| Connectivity: | |
| Power supply: | Mains: 117 / 220 / 240 VAC
or 13.8 VDC |
| Current drain / power consumption: | RX: ? mA @ 13.8 VDC
TX: Max ? A @ 13.8 VDC |
| Antenna impedance / connector: | 50 ohm / Two SO-239 |
| Dimensions (W*H*D): | 480*150*400 mm (18.9*5.9*15.7") |
| Weight: | 19 Kg (41.9 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 21.8 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.32 uV (12 dB SINAD) |
| Squelch sensitivity: | Less than 0.2 uV (Threshold) |
| Noise figure: | |
| Selectivity: | 25 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 1.7 W at 10% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
25 W
|
| Modulation system: | Variable reactance frequency modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / 8-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 198x-198x (Discontinued) |
| Additional info: | |
| Related documents: |
Operating and service manual (19.7 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
