| GENERAL |

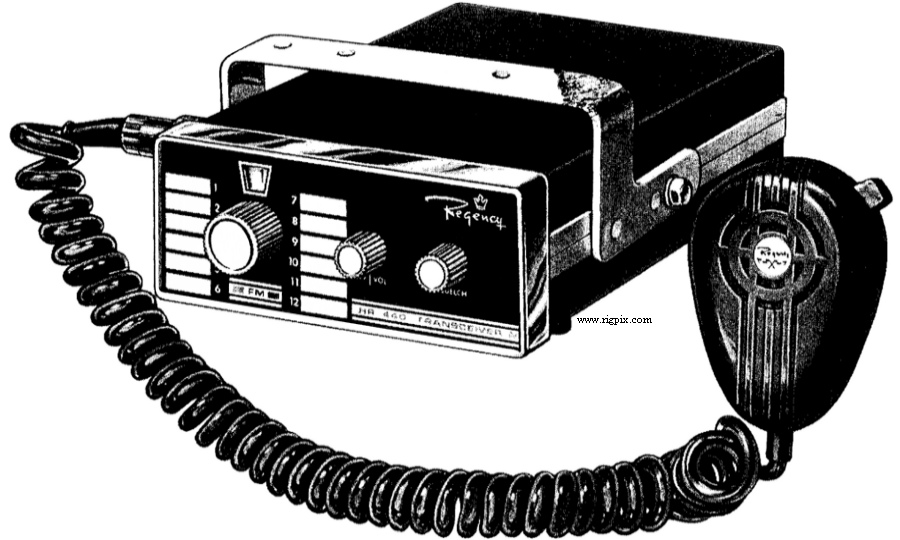

| Type: | Amateur UHF transceiver |
| Frequency range: |
TX: 444-450 MHz
RX: 444-450 MHz
(Can be aligned to any 6 MHz segment between 420-450 MHz)
|
| Tuning steps: | Channelized |
| Frequency stability: | ?% |
| Mode: | FM |
| Channels / memory management: |
12 regular
Two XTALs per channel
|
| Repeater shift / offset: | Depending on XTALs |
| Power supply: | 13.6 VDC (Male 4-pin Jones connector) |
| Current drain / power consumption: | RX: 180-800 mA
TX: Max 4 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: | AFC. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.5 uV (20 dB quieting) |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | 14 KHz (-6 dB)
40 KHz (-50 dB) |
| Image rejection: | |
| AF output power / speaker: | 3 W at 10% distortion / 4 ohm |
| External speaker connector: | Screw terminals, 3-4 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
10 W
|
| Modulation system: | Phase modulation |
| Max FM deviation (Factory set): | ±5 KHz (±0-10 KHz adjustable) |
| Spurious emissions: | Better than -54 dB |
| Microphone impedance / connector: | Hi-Z / 3-conductor (1/4" jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1975-197x (Discontinued) |
| Additional info: |
New price 1976 in the US: $349.00
|
| Related documents: | User manual (2.5 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
