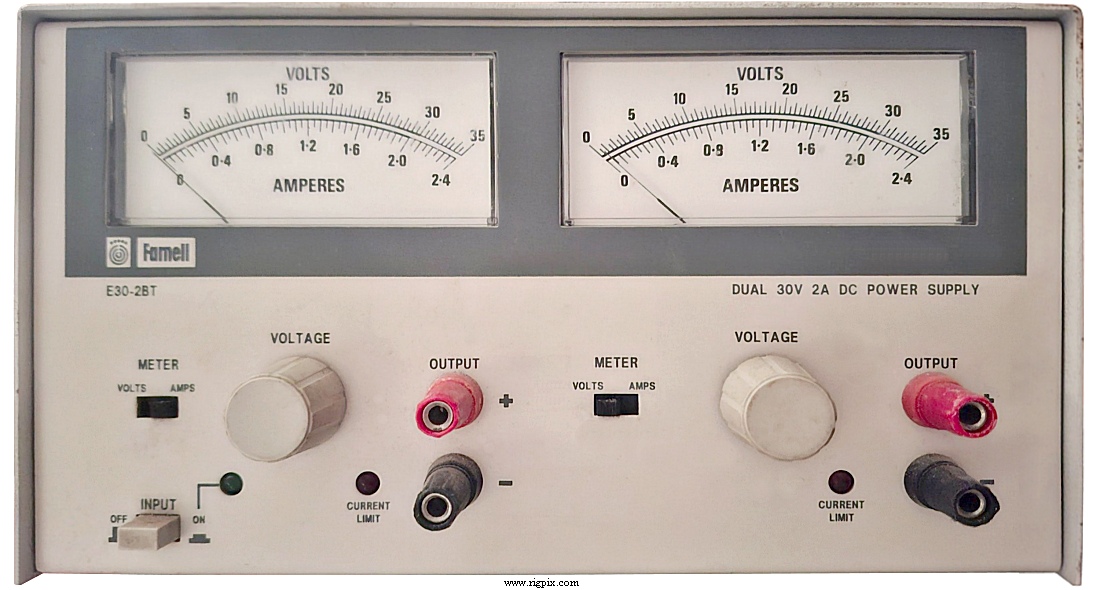

| Type: | Linear regulated dual power supply |
| Input voltage: | 220 / 240 VAC ±10% (110 / 120 VAC optional) |
| Output voltage: | 0-30 / 0-30 VDC |
| Output current: | Max 2 / 2 A |
| Ripple: | Less than 1 mV RMS @ full load |
| Voltage fluctuation: | |
| Efficiency: | |
| Dimensions (W*H*D): | 240*150*250 mm (9.45*5.9*9.84") |
| Weight: | 7.7 Kg (16.98 lb) |
| Manufactured: | 1991-199x |
| Additional info: |
Overcurrent protection. Dual V/A meters.
|
| Related documents: |
Service manual (7.8 MB)
|
| Modifications and fixes: | |
| Reviews: | |
