| GENERAL |

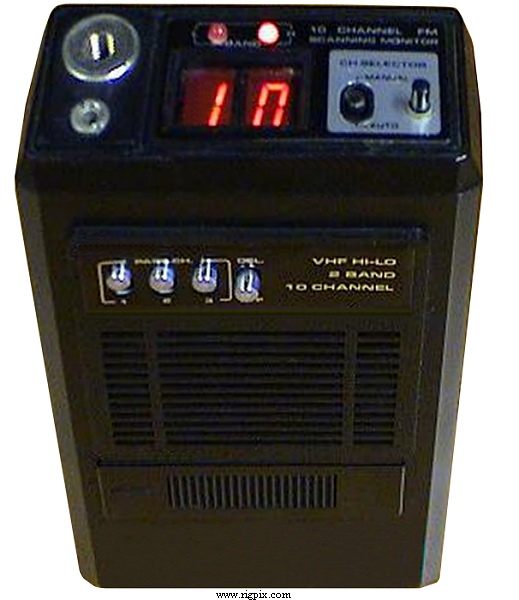

| Type: | VHF receiver/scanner |
| Frequency range: |
70-90 / 144-170 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: |
10 regular
XTAL controlled
|
| Power supply: | ? VDC |
| Current drain / power consumption: | ? mA |
| Antenna impedance / connector: | 50-75 ohm / Threads |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? g (? oz) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: 455 KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | TS "Subminijack" (2.5 mm) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 197x-198x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
