| GENERAL |
| Type: | VHF receiver |
| Frequency range: | 110-140 MHz |
| Tuning steps: | Analog / continuous |
| Frequency stability: | |
| Mode: | AM |
| Channels / memory management: | - |
| Power supply: | 3 VDC (Two Type 386 silver oxide button cells: Saxton B-102) |
| Current drain / power consumption: | ? mA |
| Antenna impedance / connector: | Short foldable whip antenna |
| Dimensions: | Length: 120 mm (4.72"), with antenna folded
Diameter: 15 mm (0.59") |
| Weight: | 33 g (1.16 oz) |
| Other features: |

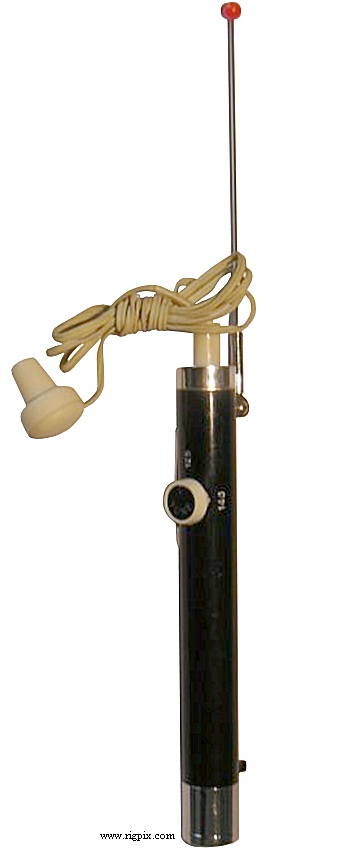

Pen-style receiver, ultra small for its time.
Fixed output level, no volume control.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / No internal speaker |
| External speaker connector: | TS "Subminijack" (2.5 mm) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Hong Kong, 1970-197x (Discontinued) |
| Additional info: |
New price 1971 in Sweden: SEK 79:50
New price 1972 in Sweden: SEK 89:-
New price 1973 in Sweden: SEK 89:-
New price 1974 in Sweden: SEK 89:-
New price 1978 in Sweden: SEK 129:-
New price 1979 in Sweden: SEK 129:-
New price 1980 in Sweden: SEK 129:-
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
