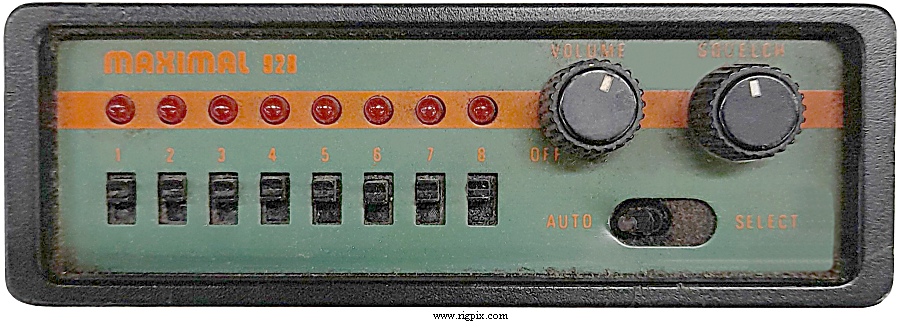

| GENERAL |
| Type: | VHF receiver/scanner |
| Frequency range: | 76-82 / 164-172 MHz |
| Tuning steps: | Channelized |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: |
8 regular
XTAL controlled
|
| Power supply: | 13.8 VDC (Male barrel jack, center positive) |
| Current drain / power consumption: | Less than 350 mA |
| Antenna impedance / connector: | 50-75 ohm / DIN41585 (Motorola) |
| Dimensions (W*H*D): | 118*42*164 mm (4.65*1.65*6.56") |
| Weight: | 825 g (1.82 lb), with mobile bracket |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz - Ceramic filter: Two Kyocera F455P 20A
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 198x-198x (Discontinued) |
| Additional info: |
Main PCB: 8-081-005 by Marukura
Sub PCB: 8-081-006 - Switches and LEDs board
|
| Related documents: |
AF amplifier: M51513L
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
