| GENERAL |

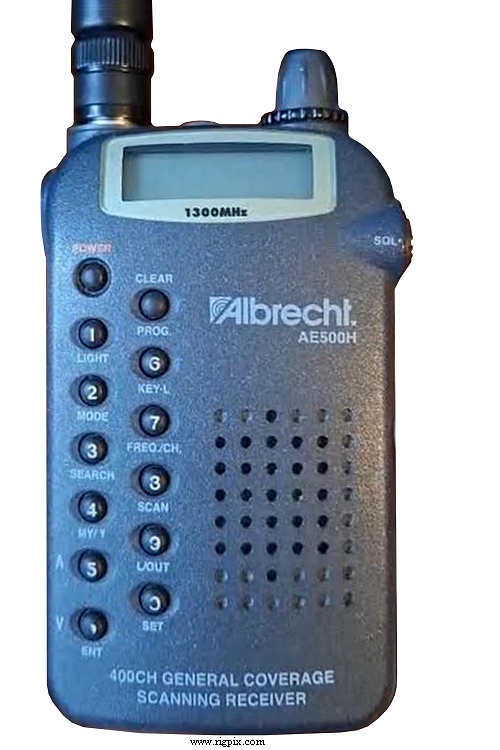

| Type: | HF/VHF/UHF receiver/scanner |
| Frequency range: |
0.5-1300 MHz
|
| Tuning steps: | 1 / 5 / 6.25 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 KHz |
| Frequency stability: | ? ppm |
| Mode: | AM / FM / WFM |
| Channels / memory management: |
400 regular
10 search pairs
80 search pass
2 seconds scan resume delay (Squelch controlled)
5 seconds scan resume delay (Pause timer controlled)
|
| Power supply: | 2.2-3.5 VDC (Two R6 / AA alkaline or rechargeable batteries) |
| Current drain / power consumption: | 16-125 mA |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 58*97*24 mm (2.28*3.82*0.94") |
| Weight: | 200 g (7.05 oz), with batteries and antenna |
| Other features: |
Attenuator (~20 dB). Dual watch. Battery warning.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: |
AM (10 dB S/N)
0.5-5 MHz: 1.5 uV
5-370 MHz: 1 uV
FM (12 dB SINAD)
5-160 MHz: 0.5 uV
160-370 MHz: 0.7 uV
370-520 MHz: 0.5 uV
520-1300 MHz: 1 uV
WFM (12 dB SINAD)
5-160 MHz: 0.7 uV
160-1300 MHz: 1 uV
|
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 90 mW at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan (By Marantz), 199x-199x (Discontinued) |
| Reset procedure: |
Partial reset
Hold down FUNC key and press 0/SET key.
Turn the selector and change the Set menu to "OFF rES".
Hold down the FUNC key and turn the selector to change from "OFF" to "on".
Hold down the FUNC key and press the POWER key. A beep is emitted.
Release the keys. All except channel memories is now reset.
All reset
Press POWER key to turn power off.
Hold down FUNC key and SQL OFF key and press POWER key.
Release the keys. The radio is now fully reset to factory default.
|
| Additional info: | |
| Related documents: |
User manual (109 KB)
|
