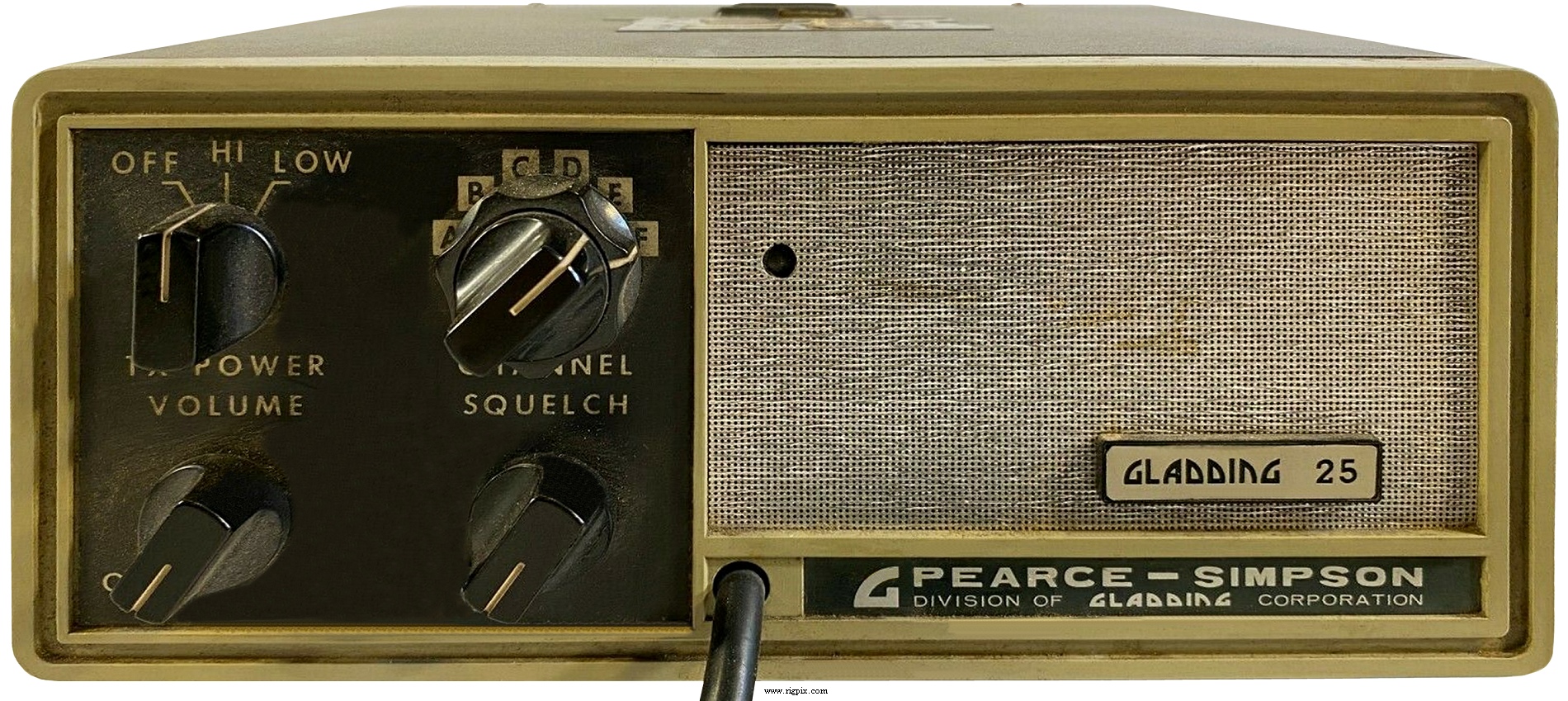

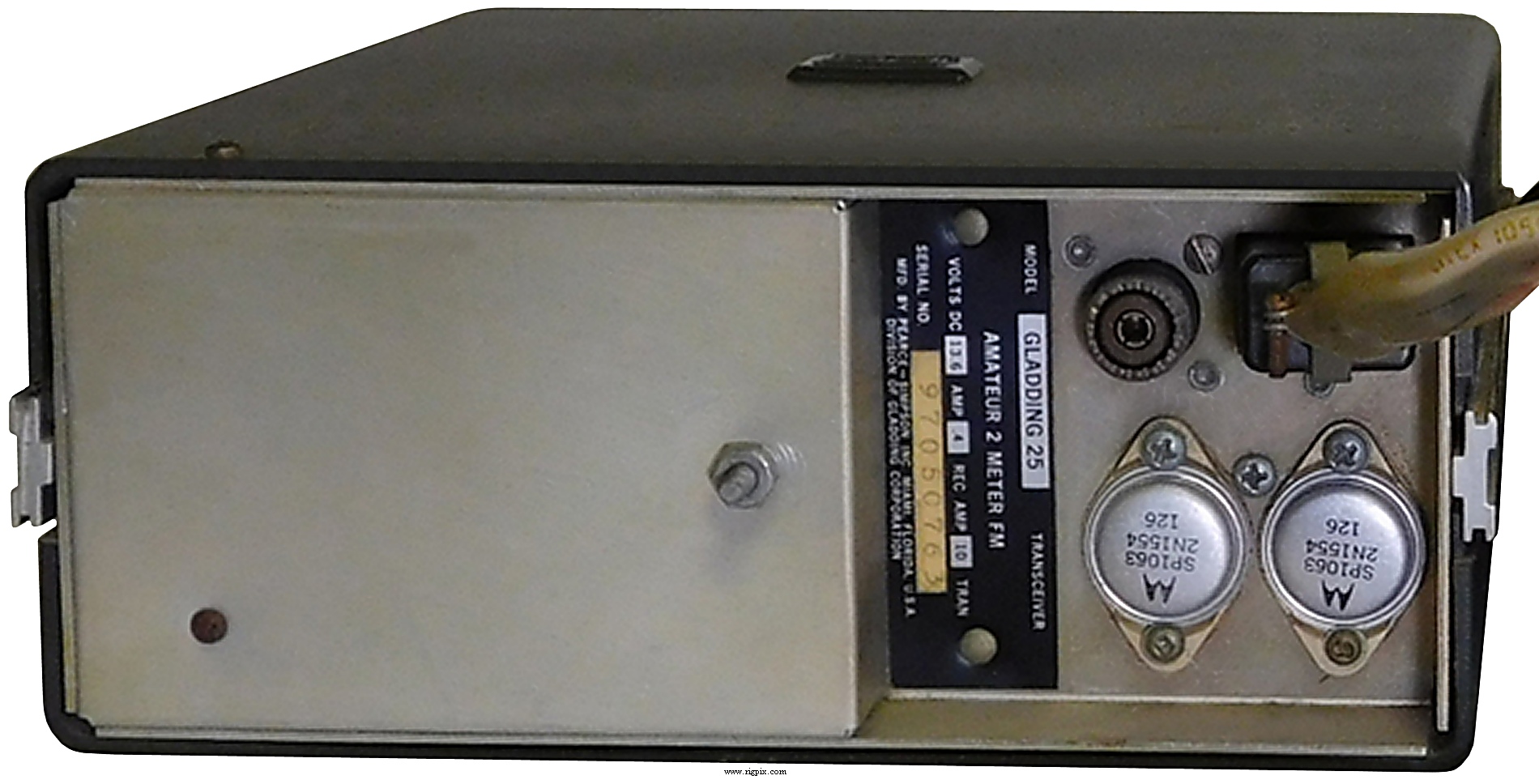

| GENERAL |
| Type: | Amateur VHF transceiver |
| Frequency range: |
TX: 145-148 MHz
RX: 145-148 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | Max ? ppm |
| Mode: | FM |
| Channels / memory management: |
6 regular
XTAL-controlled
12 MHz XTALs for TX and 78 MHz XTALs for RX
|
| Repeater shift / offset: | Depending on XTALs |
| Power supply: | 13.6 VDC |
| Current drain / power consumption: | RX: Max 400 mA
TX: Max 10 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 216*89*254 mm (8.5*3.5*10") |
| Weight: | 3.86 Kg (8.5 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz (8 pole crystal lattice filter)
2nd IF: 455 KHz
|
| Sensitivity: | 0.3 uV (12 dB SINAD) |
| Selectivity: | 15 KHz (-6 dB)
30 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 2 W at 10% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | Phase modulation with automatic deviation limiting |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / Fixed cord |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1970-197x (Discontinued) |
| Additional info: |
Tube hybrid. 12BY7 driver and 6883 final.
New price 1971 in Sweden: SEK 1790:-
New price 1971 in the US: $249.95
New price with PSU, 1971 in the US: $295.95
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | 73 Amateur Radio: December 1971 |
| Options / Accessories: |
|
Gladding PS
|
AC power supply. Input: 117 VAC. Output: 13 VDC, 10 A
|
|
