| GENERAL |

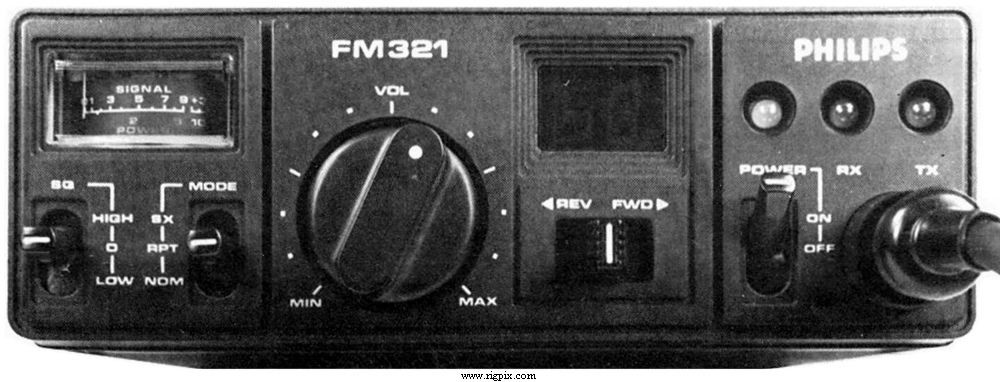

| Type: | Amateur UHF transceiver |
| Frequency range: |
TX: 433.025-434.000 / 438.025-439.000 MHz
RX: 438.025-439.000 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ±? ppm |
| Mode: | FM |
| Channels / memory management: |
40 preprogrammed
|
| Repeater shift / offset: | -5 MHz |
| Power supply: | 11-16.2 VDC |
| Current drain / power consumption: | RX: ? mA
TX: Max ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | 0.3 uV (12 dB SINAD) |
| Selectivity: | 50 KHz (-50 dB) |
| Image rejection: | |
| AF output power / speaker: | 1 W at 10% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
5 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -63 dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Australia, 1979-198x (Discontinued) |
| Additional info: |
New price 1979 in Australia: $299.00 AUD
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
