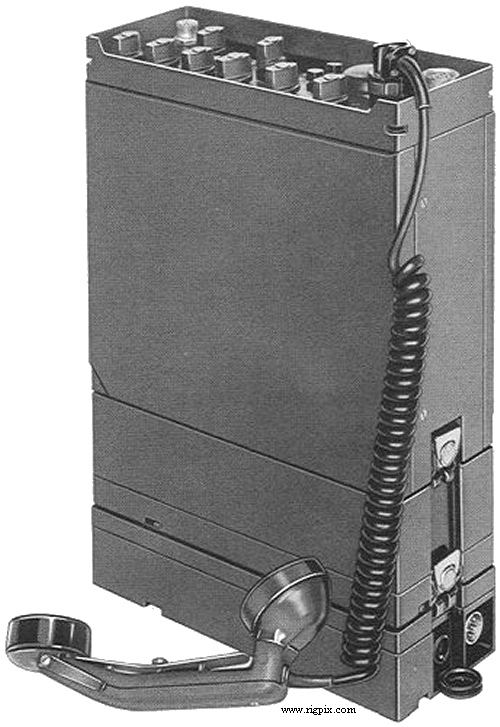

| GENERAL |
| Type: | Military VHF transceiver |
| Frequency range: |
75.275-87.455 MHz in two bands
UB channel 400-519: 75.275-77.655 MHz
OB channel 400-519: 85.075-87.455 MHz
|
| Tuning steps: | Channelized (In 20 KHz increments) |
| Frequency stability: | Max ? ppm |
| Mode: | FM |
| Channels / memory management: | |
| Duplex shift / offset: | No |
| Power supply: | 12 VDC |
| Current drain / power consumption: | RX: 260-500 mA
TX: Max 4.2 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 250*106*260 mm (9.84*4.17*10.23") |
| Weight: | 7 Kg (15.43 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.4 MHz
2nd IF: 470 KHz
|
| Sensitivity: | 0.7 uV (20 dB S/N) |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 800 mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 10 W
Low: 3 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | West Germany, 1967-197x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
