| GENERAL |
| Type: | Military HF transmitter |
| Frequency range: | 1.5-20 MHz |
| Tuning steps: | |
| Frequency stability: | |
| Mode: | AM / CW / FSK |
| Channels / memory management: |
8 autotune presets
|
| Power supply: | 24 VDC (Dynamotor supply) |
| Current drain / power consumption: | Max 42 A |
| Antenna impedance / connector: | ? ohm / ? |
| Dimensions (W*H*D): | 559*292*359 mm (22*11.5*14.12") |
| Weight: | 55 Kg (121 lb) |
| Other features: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
Max 100 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1956-195x (Discontinued) |
| Additional info: |
22 tubes

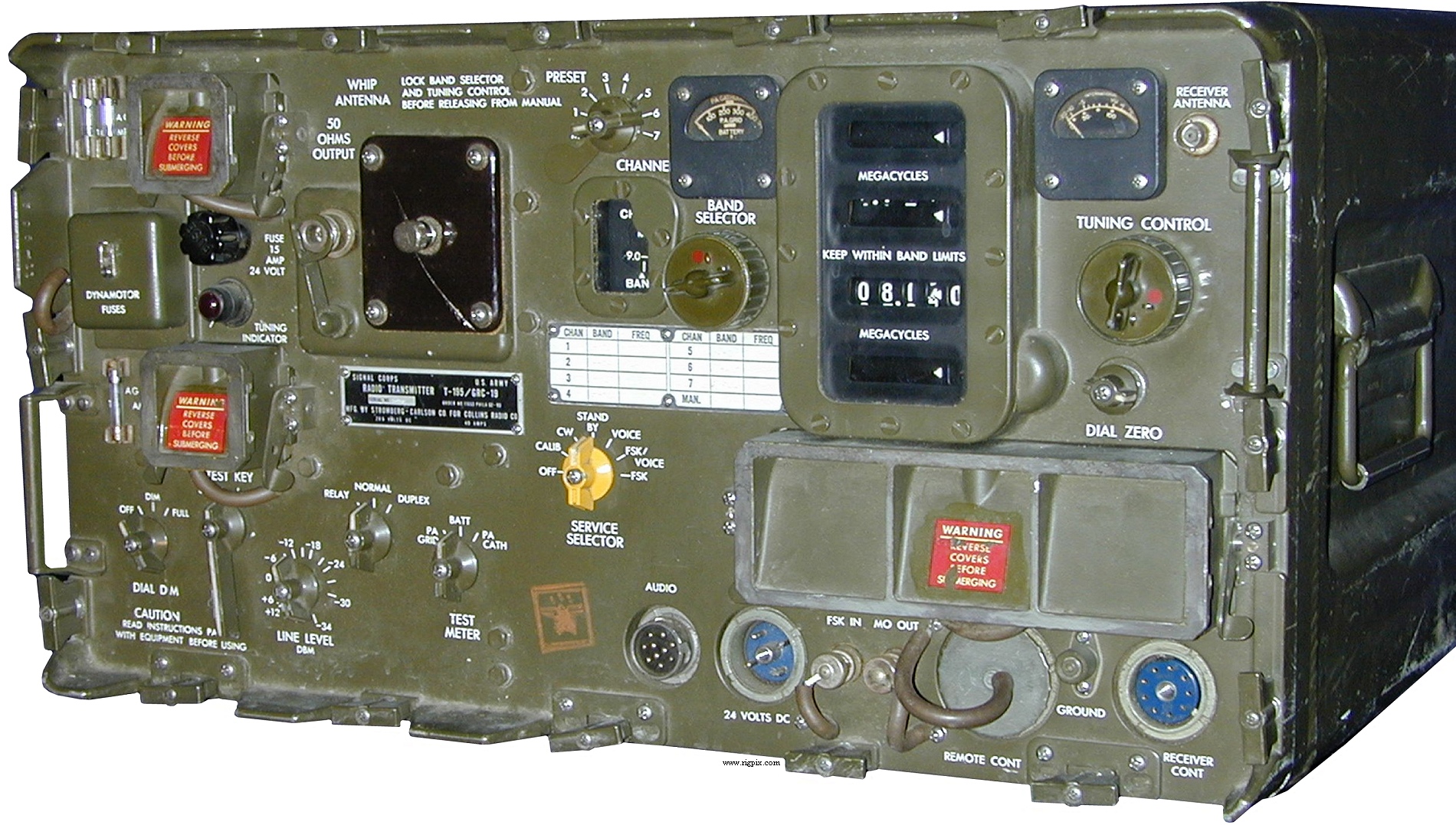

This specific sample was manufactured by Stromberg-Carlson.
Other manufacturers were Collins and Stewart Warner.
Matching receiver: R-392/URR
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
