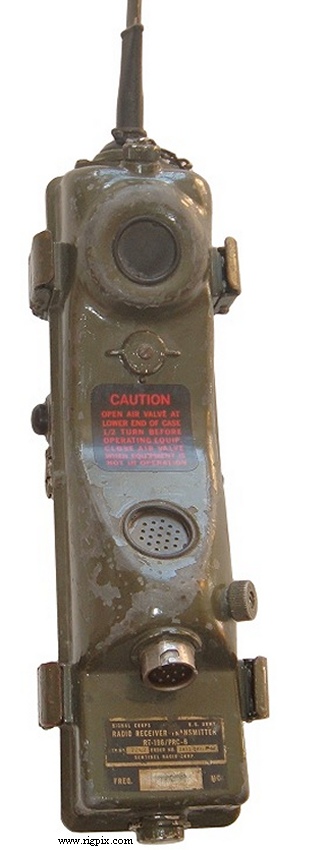

| GENERAL |
| Type: | Military VHF transceiver |
| Frequency range: | 47.0-55.4 MHz |
| Tuning steps: | Channelized |
| Frequency stability: | Max ? ppm |
| Mode: | FM |
| Channels / memory management: |
1 regular
XTAL controlled
|
| Duplex shift / offset: | No |
| Power supply: | +1.5, -4.5, +45 and +90 VDC (Internal BA-270/U battery pack) |
| Current drain / power consumption: | RX: Max 500 mA
TX: Max 1.5 A |
| Antenna impedance / connector: | - / Threads (For whip antenna)
50-75 ohm / BNC |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 250 mW |
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1949-195x (Discontinued) |
| Additional info: |
13 subminiature tubes.
Manufacturers include Raytheon and Emerson Radio.
In use during the Korean and Vietnam wars.
Was also used by a number of NATO countries.
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
