| GENERAL |
| Type: | Military UHF transceiver |
| Frequency range: | 350-450 MHz |
| Tuning steps: | Channelized (In 25 / 500 KHz or 1.2 MHz steps) |
| Frequency stability: | ±1 ppm @ -30 to +65°C (-22 to +149°F) |
| Mode: | DV (FSK and GMSK) |
| Channels / memory management: |
14 presets
|
| Duplex shift / offset: | Programmable |
| Power supply: | ? VDC (Li-Ion pack or optional six LR6 / AA batteries) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SMA |
| Dimensions (W*H*D): | 80*171*35 mm (3.15*6.73*1.38"), with battery pack |
| Weight: | 550 g (? oz), with battery pack |
| Other features: |
FIPS-197 AES 256-bit and Citadel 256-bit encryption.
Full duplex capable. Built-in GPS. USB 2.0 jack. VOX.
Whisper mode. Dual PTT for dual nets.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 2 W
Mid: 1 W
Low: 250 mW
|
| Modulation system: | |
| Max FM deviation (Factory set): | |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 200x-20xx |
| Additional info: |

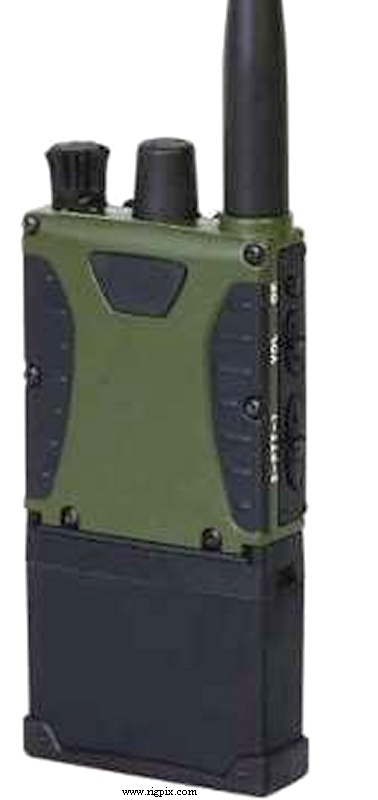

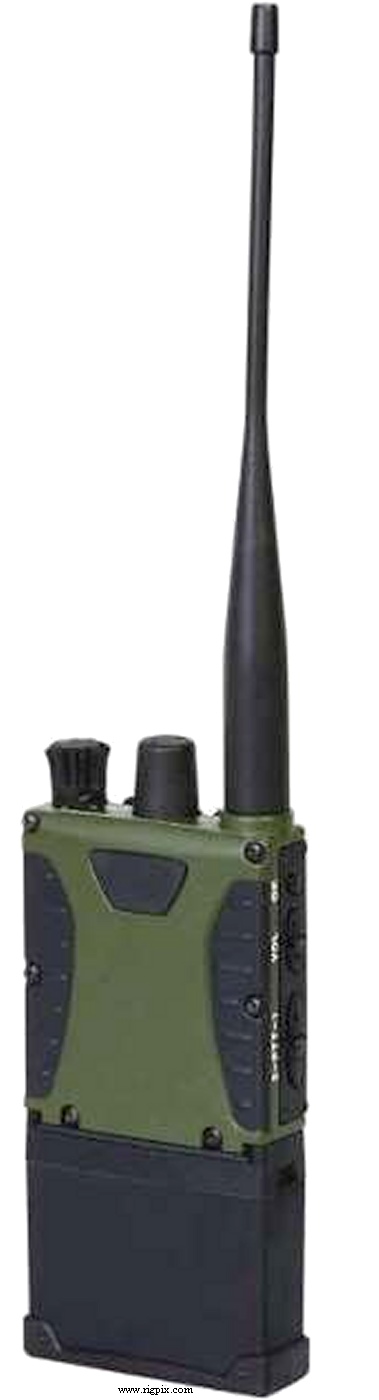

This is a Harris RF-7800S adapted for the swedish army.
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
