| GENERAL |
| Type: | Military HF receiver |
| Frequency range: |
Early: 2-5.8 MHz
Later: 5-13 MHz
|
| Tuning steps: | Analog / continuous (PTO) |
| Frequency stability: | |
| Mode: | AM |
| Channels / memory management: | |
| Power supply: | Two 1.5 and one 67.5 VDC batteries in a separate box |
| Current drain / power consumption: | 250 mA @ 3 VDC
5 mA @ 67.5 VDC |
| Antenna impedance / connector: | ? ohm / ? |

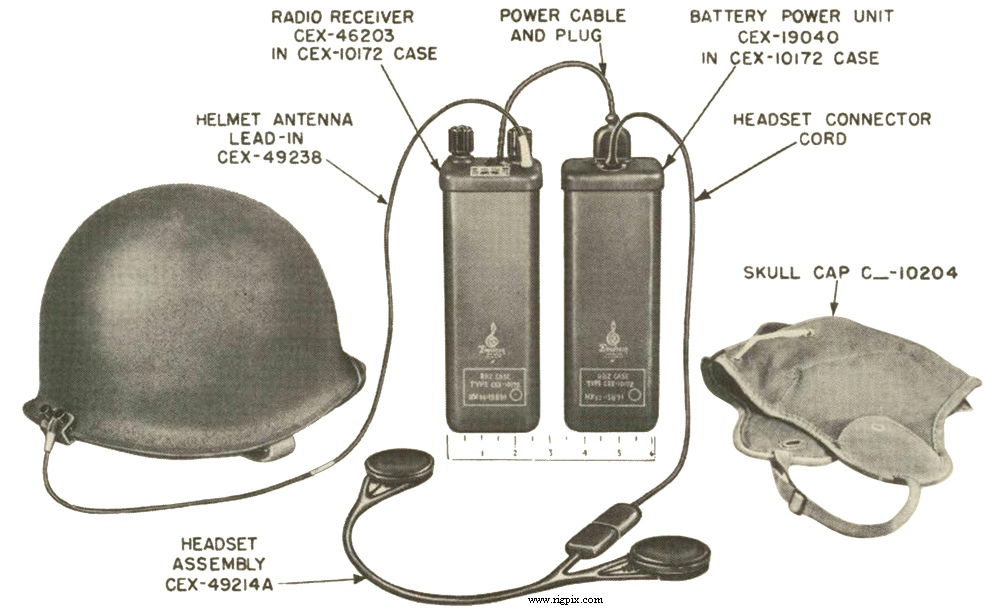

| Dimensions (W*H*D): | 74*203*48 mm (2.9*8*1.9"), CEX-46203 receiver unit and case only |
| Weight: | 852 g (1.88 lb), CEX-46203 receiver unit and case only |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 455 KHz
|
| Sensitivity: | 1 to 4 uV for 1 mW audio output |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / 600 ohm (Headphones only) |
| External speaker connector: | - |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA (By Emerson Radio & Phonograph Corp.), 1943-194x (Discontinued) |
| Additional info: |
5 tubes. Waterproof.
Surplus price 1947 in the US: $11.95 (Less batteries)
|
| Related documents: |
User/service manual (9.3 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
