| GENERAL |
| Type: | Military HF transceiver |
| Frequency range: | 3.5-6.0 MHz |
| Tuning steps: | Channelized |
| Frequency stability: | Max ? ppm |
| Mode: | AM |
| Channels / memory management: |
1 regular
XTAL controlled
|
| Duplex shift / offset: | No |
| Power supply: | 1.5 VDC (Filament battery) and 103.5 VDC (Anode battery)
Jones connector |
| Current drain / power consumption: | RX: 250 mA (Filament) and 11 mA (Anode)
TX: 300 mA (Filament) and 35 mA (Anode) |
| Antenna impedance / connector: | - / Telescopic whip
Hi-Z / Banana jack? |
| Dimensions (W*H*D): | 100*430*130 mm (3.9*16.9*5.1") |
| Weight: | 2 Kg (4.4 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: | 3 to 5 uV (No S/N reference) |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | Jones connector |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 360 mW |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / Jones connector |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1942-194x (Discontinued) |
| Additional info: |

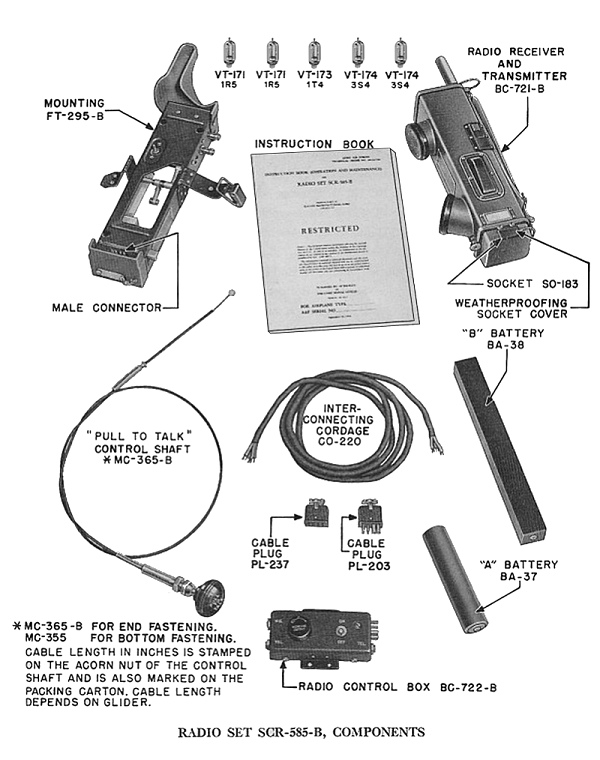

Part of the SCR-585-A and B radio sets.
Five tubes. Was used in WWII gliders i.e. Waco CG-4A "Hadrian".
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
BA-37
BA-38
BC-722-B
FT-295-B
MC-355
MC-365-B
|
Filament battery
Anode battery
Radio control box
Mounting
Control shaft
Control shaft
|
|
