| GENERAL |

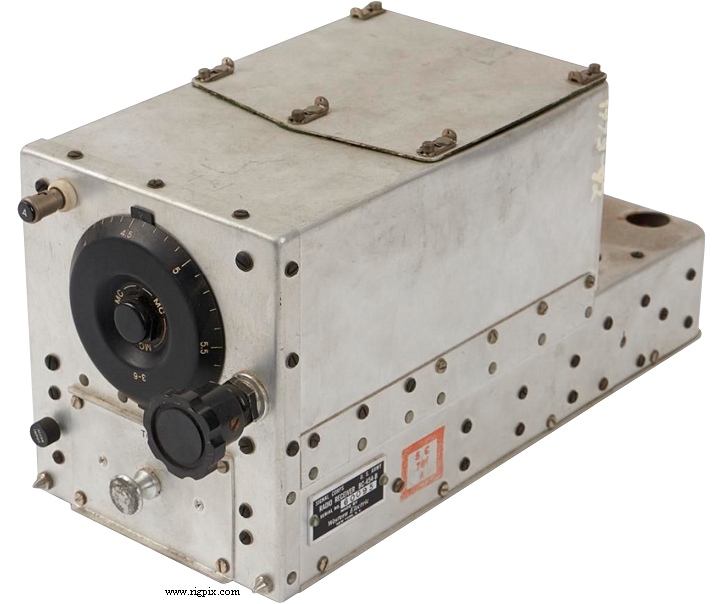

| Type: | Military HF receiver |
| Frequency range: |
3-6 MHz
|
| Tuning steps: | Analog / continuous |
| Frequency stability: | |
| Mode: | AM / CW |
| Channels / memory management: | |
| Power supply: | 28 VDC (Dynamotor supply) |
| Current drain / power consumption: | 1.1 A @ 28 VDC |
| Antenna impedance / connector: | ? ohm / ? |
| Dimensions (W*H*D): | 125*140*300 mm (4.92*5.51*11.8") |
| Weight: | 3.9 Kg (8.6 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 1.415 MHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / 8 Kohm (-A suffix) or 600 ohm (-B suffix) |
| External speaker connector: | |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1939-194x (Discontinued) |
| Additional info: |
6 tubes.
This receiver was part of the SCR-274N aircraft radio system.
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
