| GENERAL |

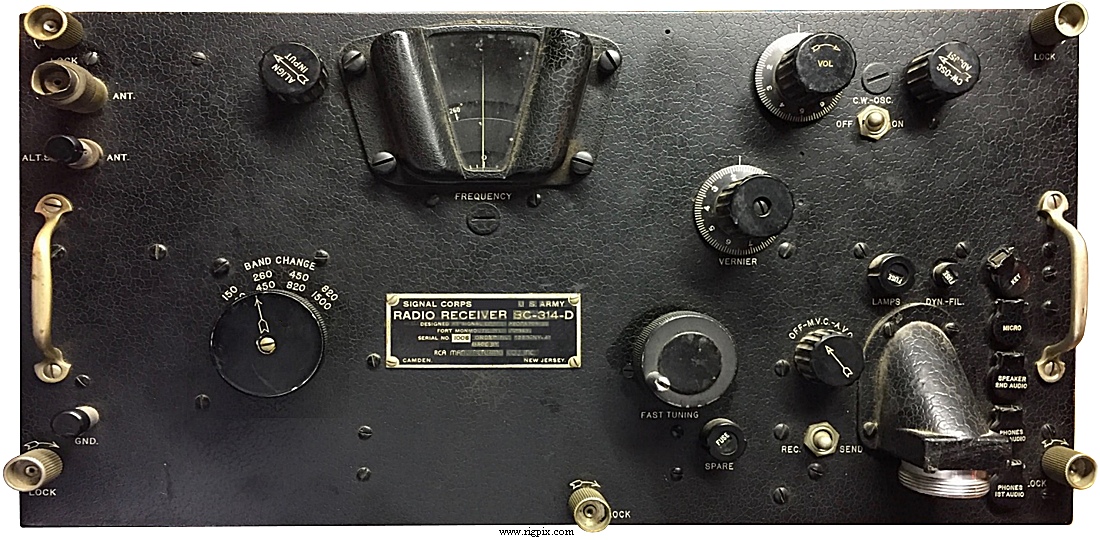

| Type: | Military VLF receiver |
| Frequency range: |
0.15-1.5 MHz in four bands
150-260 KHz
260-450 KHz
450-820 KHz
820-1500 KHz
|
| Tuning steps: | Analog / continuous |
| Frequency stability: | |
| Mode: | AM / CW |
| Channels / memory management: | |
| Power supply: | 12-14 VDC (Dynamotor supply) |
| Current drain / power consumption: | ? |
| Antenna impedance / connector: | ? ohm / ? |
| Dimensions (W*H*D): | 460*254*231 mm (18.1*10*9.1") |
| Weight: | 29.4 Kg (64.8 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 92.5 KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA (By RCA), 1939-194x (Discontinued) |
| Additional info: |
WWII. 10 tubes.
This receiver was also available as BC344 for mains voltage.
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
