Midland 13-916

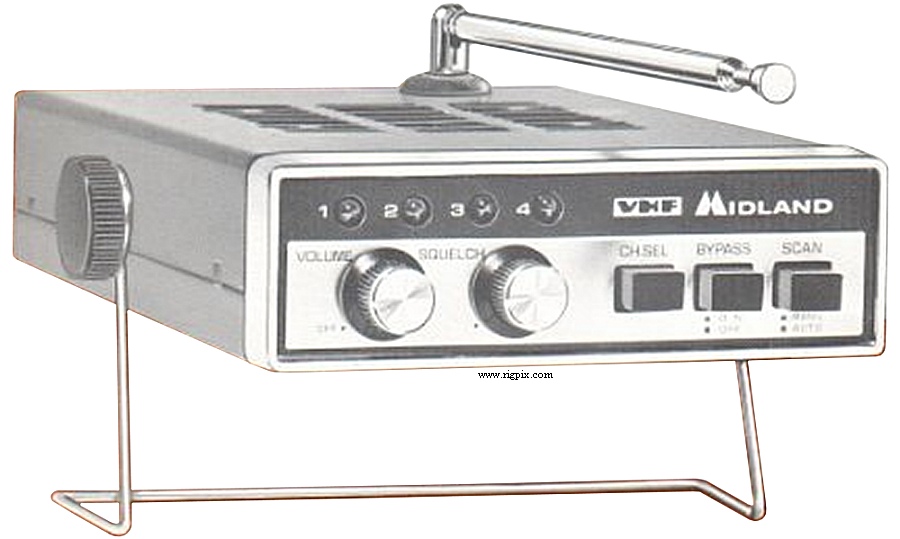

A picture of Midland 13-916

SPECIFICATIONS

GENERAL
Type:VHF receiver/scanner
Frequency range: 150-170 MHz
Tuning steps:Channelized
Frequency stability:? ppm
Mode:FM
Channels / memory management: 4 regular @ 8 channels per second
Channel 1 bypass switch
One XTAL per channel
Power supply:13.8 VDC
Current drain / power consumption:? mA
Antenna impedance / connector:50 ohm / DIN41585 (Motorola)
or screw-in telescopic whip
Dimensions (W*H*D):? mm (?")
Weight:907 g (2 lb)
Other features:




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz
Sensitivity:1 uV (20 dB quieting)
Squelch sensitivity:0.8 uV (Threshold)
Noise figure:
Selectivity:
Image rejection:
AF output power / speaker:800 mW at ?% distortion / 8 ohm
External speaker connector:TS "Minijack" (3.5 mm)




MISCELLANEOUS
Manufactured:Japan, 1974-197x (Discontinued)
Additional info:
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
13-917
18-113
Portable carry case/battery pack
AC adapter. 110-120 VAC to 12 VDC
