| GENERAL |
| Type: | UHF receiver/scanner |
| Frequency range: |
450-470 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: |
4 regular @ 8 channels per second
Channel 1 bypass switch
One XTAL per channel
|
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | ? mA |

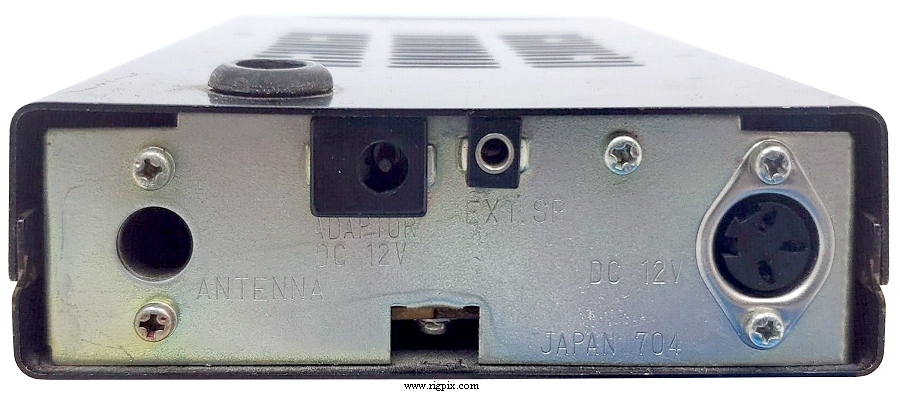

| Antenna impedance / connector: | 50 ohm / DIN41585 (Motorola)
or screw-in telescopic whip |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | 907 g (2 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 1 uV (20 dB quieting) |
| Squelch sensitivity: | 0.8 uV (Threshold) |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 800 mW at ?% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1974-197x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
13-917
18-113
|
Portable carry case/battery pack
AC adapter. 110-120 VAC to 12 VDC
|
|
