Midland 13-914

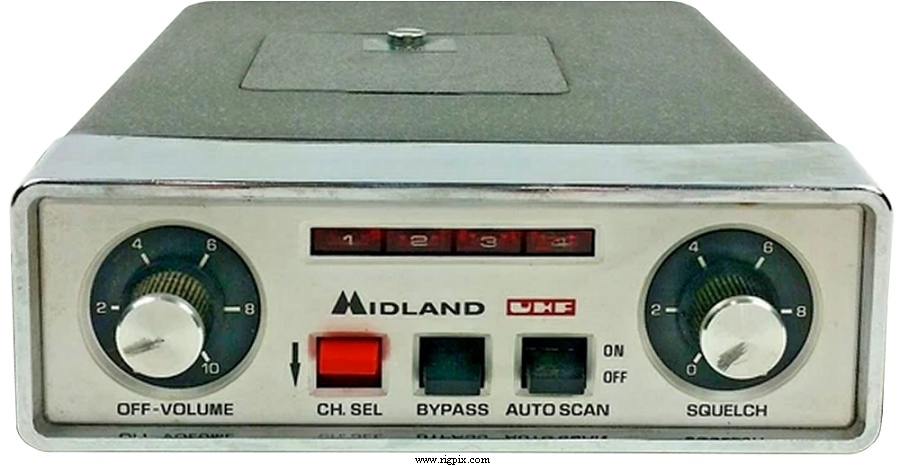

A picture of Midland 13-914

SPECIFICATIONS

GENERAL
Type:UHF receiver/scanner
Frequency range: 450-470 MHz
Tuning steps:Channelized
Frequency stability:? ppm
Mode:FM
Channels / memory management: 4 regular
One XTAL per channel
Power supply:12 VDC
Current drain / power consumption:? mA
Antenna impedance / connector:50-75 ohm / DIN41585 (Motorola)
Dimensions (W*H*D):? mm (?")
Weight:? g (? lb)
Other features:




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
Sensitivity:
Squelch sensitivity:
Noise figure:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:TS "Minijack" (3.5 mm)




MISCELLANEOUS
Manufactured:Japan, 1971-197x (Discontinued)
Additional info: New price 1972 in the US: $109.95
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
