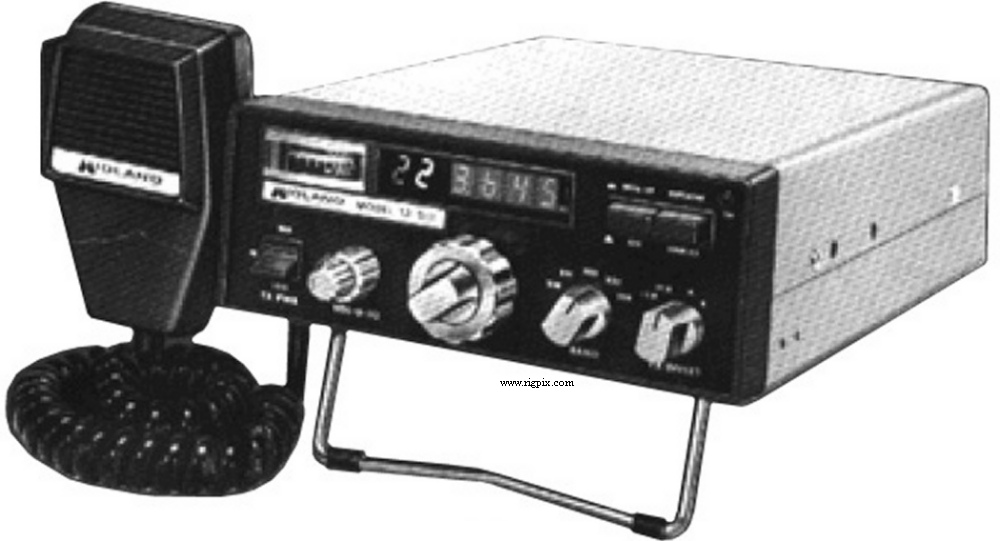

| GENERAL |
| Type: | Amateur VHF transceiver |
| Frequency range: |
USA
TX: 220-225 MHz (1.25 m)
RX: 220-225 MHz
|
| Tuning steps: | 10 / 100 KHz, 1 MHz and a +5 KHz button |
| Frequency stability: | ±? ppm |
| Mode: | FM |
| Channels / memory management: |
None
|
| Repeater shift / offset: | ±1.6 MHz |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: 800 mA (Average)
TX: 2-6 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 173*66*244 mm (6.8*2.6*9.6") |
| Weight: | 3 Kg (6.61 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 16.9 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.3 uV (12 dB S+N/N) |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | 15 KHz (-6 dB)
30 KHz (-70 dB) |
| Image rejection: | |
| AF output power / speaker: | 1.5 W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 1.25 m: | 20 W | 10 W | 2 W |
|
| Modulation system: | Direct FM (Reactance) |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | 600 ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 1978-19xx (Discontinued) |
| Additional info: | |
| Related documents: | User manual (3.8 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
