| GENERAL |

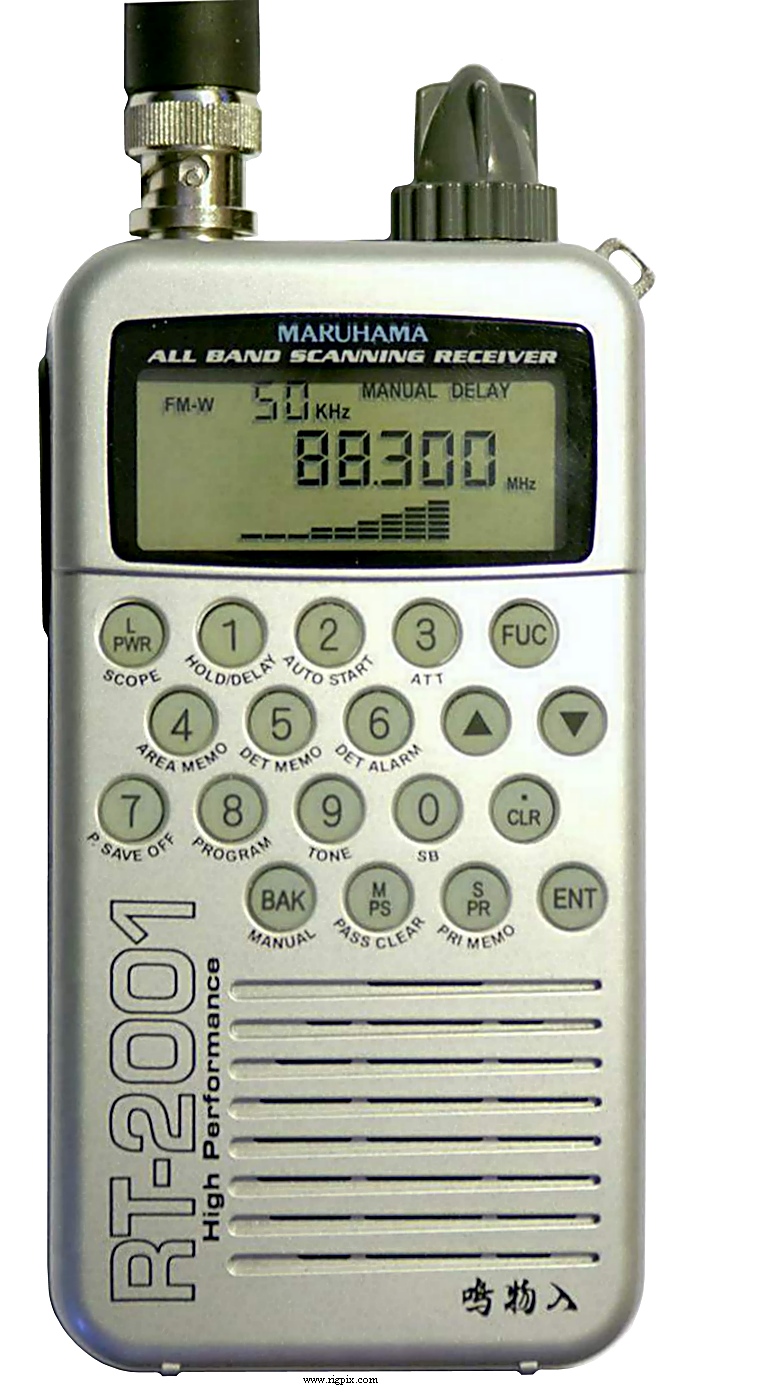

| Type: | HF/VHF/UHF receiver/scanner |
| Frequency range: |
0.1-2200 MHz
|
| Tuning steps: | 5 / 6.25 / 9 / 10 / 12.5 / 20 / 25 / 30 / 50 / 100 KHz |
| Frequency stability: | ? ppm |
| Mode: | AM / FM / WFM |
| Channels / memory management: |
600 regular in 3 banks
200 pass
10 priority
|
| Power supply: | 4.5 VDC (Three LR6 / AA batteries)
or 12 VDC external |
| Current drain / power consumption: | ? mA |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 62*117*30 mm (2.44*4.61*1.1") |
| Weight: | 180 g (6.35 oz), without batteries |
| Other features: |
Attenuator. Speech inversion descrambler.
Bug detector. 9 channel bandscope.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: |
AM (10 dB S/N)
0.5-2 MHz: 2.uV
2-1500 MHz: 1.5 uV
FM (12 dB SINAD)
0.5-2 MHz: 1.5 uV
2-1500 MHz: 1 uV
1500-2000 MHz: 2.5 uV
WFM (20 dB S/N)
2-1500 MHz: 2 uV
|
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 90 mW at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 20xx-20xx |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
